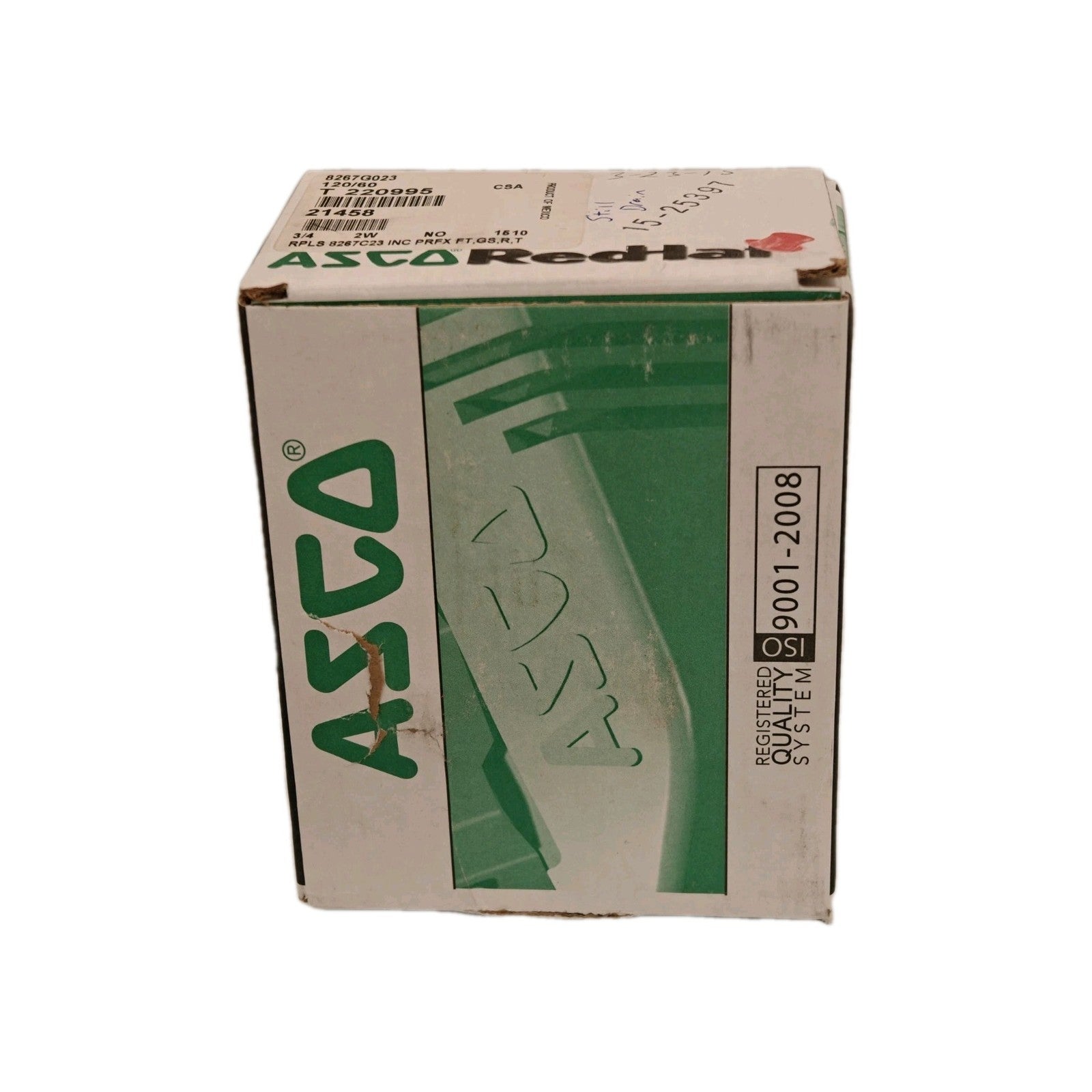

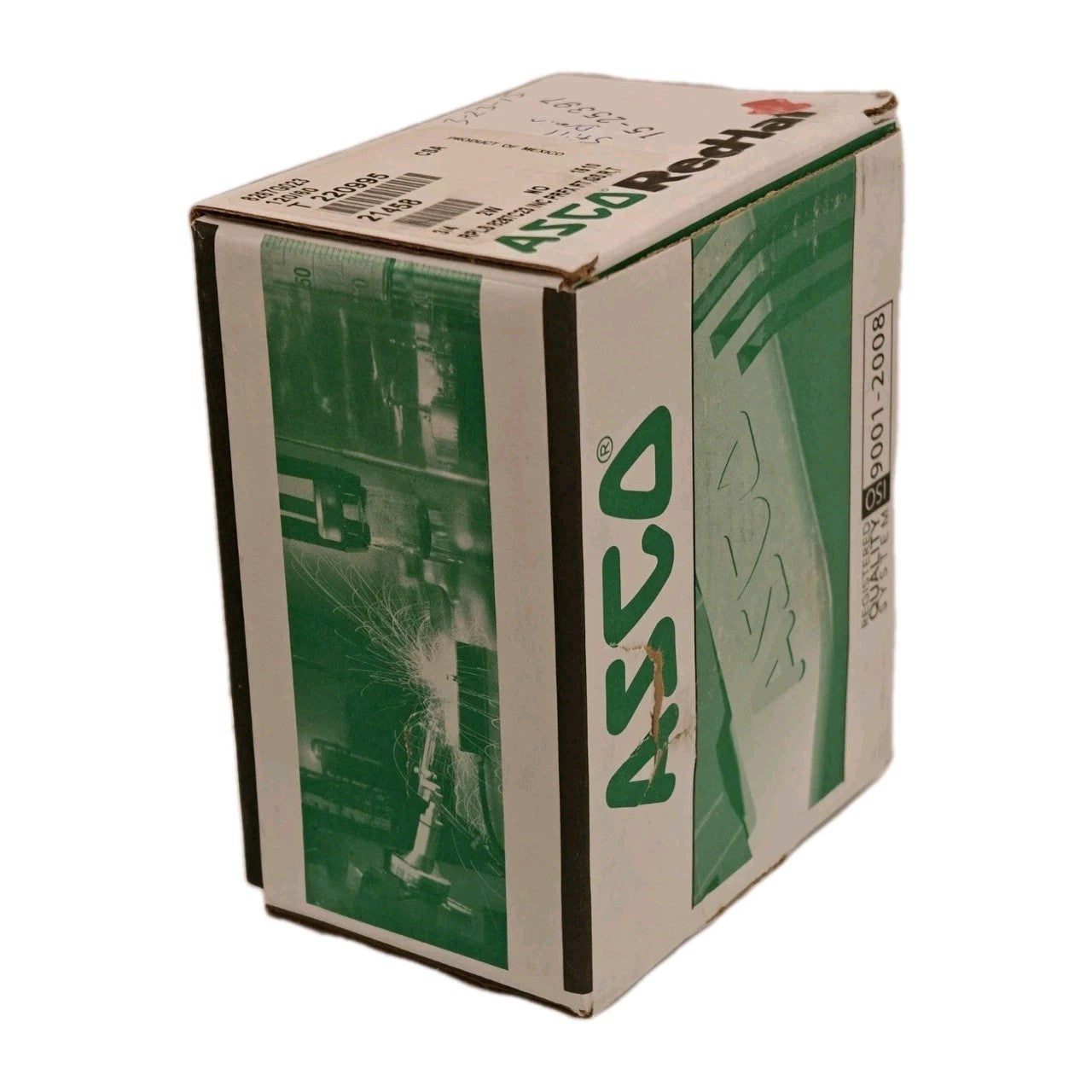

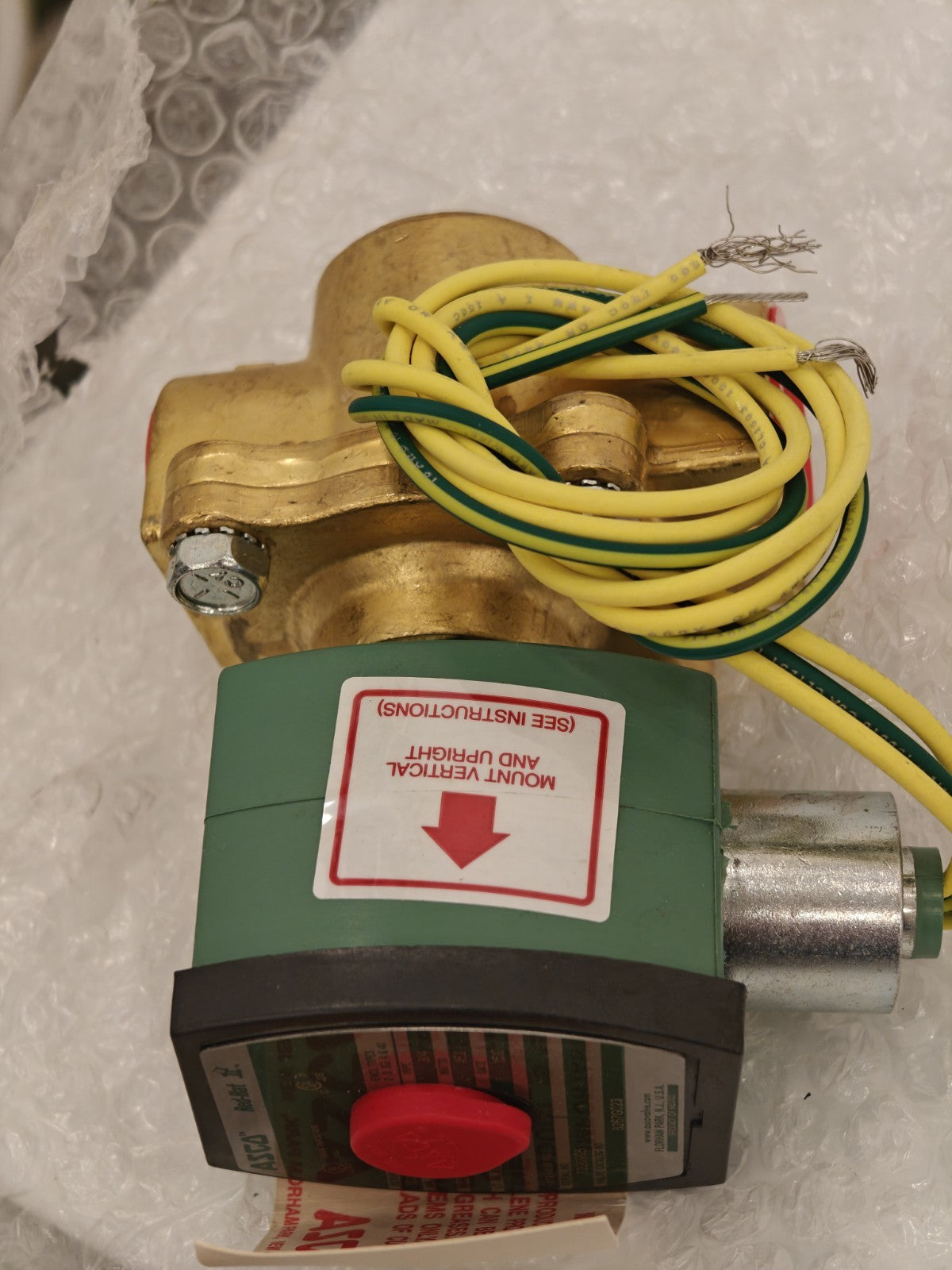

ASCO Red-Hat 8267G023 3/4" Solenoid Valve 2-Way, Normally Open, Hot Water; Steam

ASCO Red-Hat 8267G023 3/4" Solenoid Valve 2-Way, Normally Open, Hot Water; Steam

$499.99
$0.00 $499.99
Sale Sold out
Shipping calculated at checkout.
ASCO Red-Hat 8267G023 3/4" Solenoid Valve Hot Water Steam 120/60AC

Brand
REDHAT
For Media
Hot Water; Steam
Valve Type
Self-Cleaning
Valve Ways
2-Way
Valve Positions
2-Position
Valve Configuration
Normally Open
Body Material
Brass
Seal Material
PPS
Pipe Size
3/4 in
Voltage
120V AC
Wattage
16.1 W
Frequency
60 Hz
Electrical Connections
1/2" Conduit w/18" Leads
Coefficient of Volume (Cv)
9.7
Orifice Diameter
1/2 in
Min. Operating Pressure Differential
0 psi
Max. Operating Pressure Differential - Hot Water
Not Rated
Max. Operating Pressure Differential - Steam
15 psi
Max. Ambient Temperature
125 °F
Includes Seal
Yes
Includes Coil
Yes
Coil Enclosure
Watertight; Without Junction Box
Coil Insulation Class
H
Operating Environment
Indoor; Outdoor
Overall Height
4-15/16 in
Overall Length
3-7/16 in
Overall Width
2-9/32 in
NEMA Rating
1; 2; 3; 3S; 4; 4X
Standards
UL Listed
Manufacturer Part Number

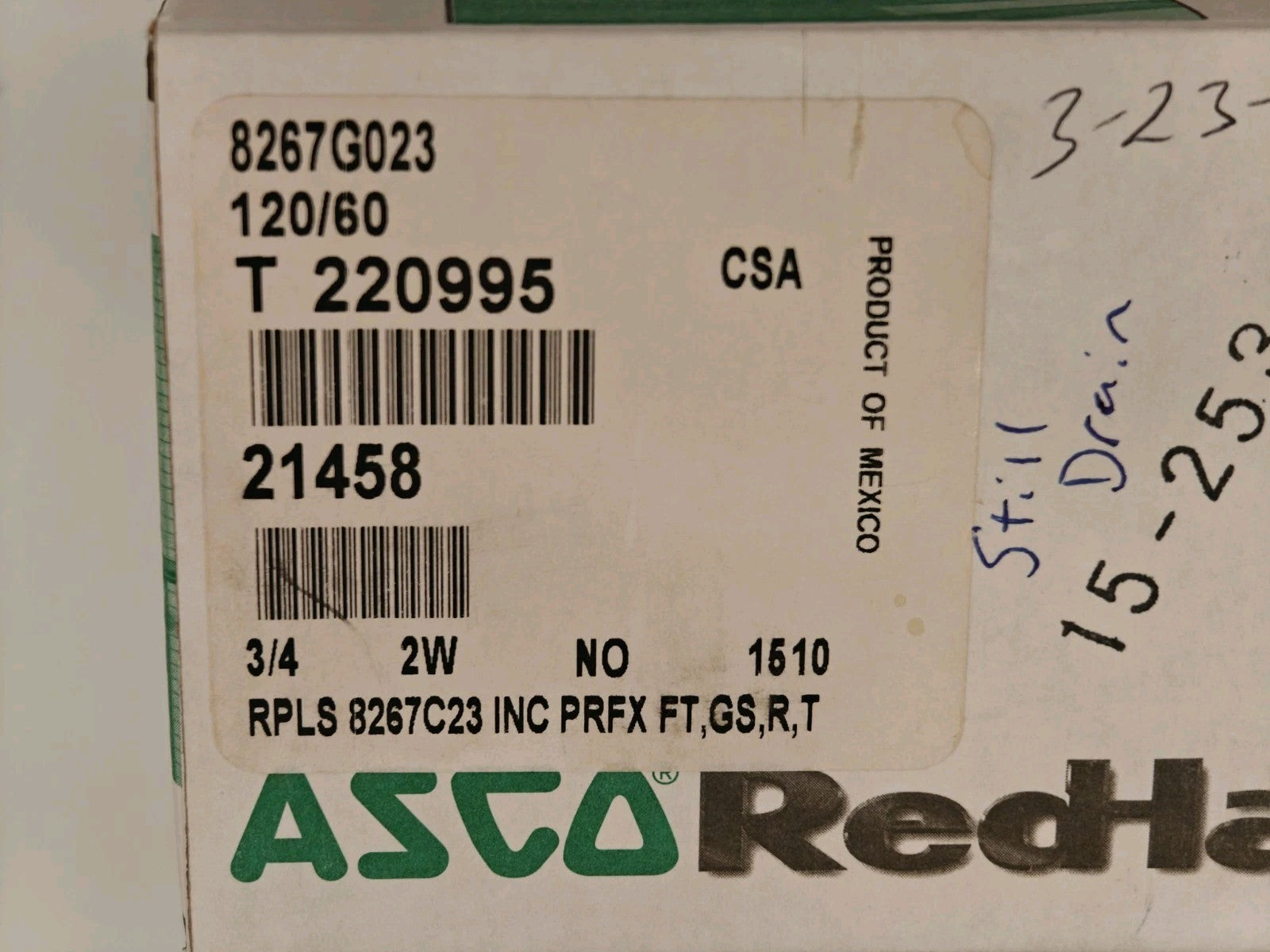

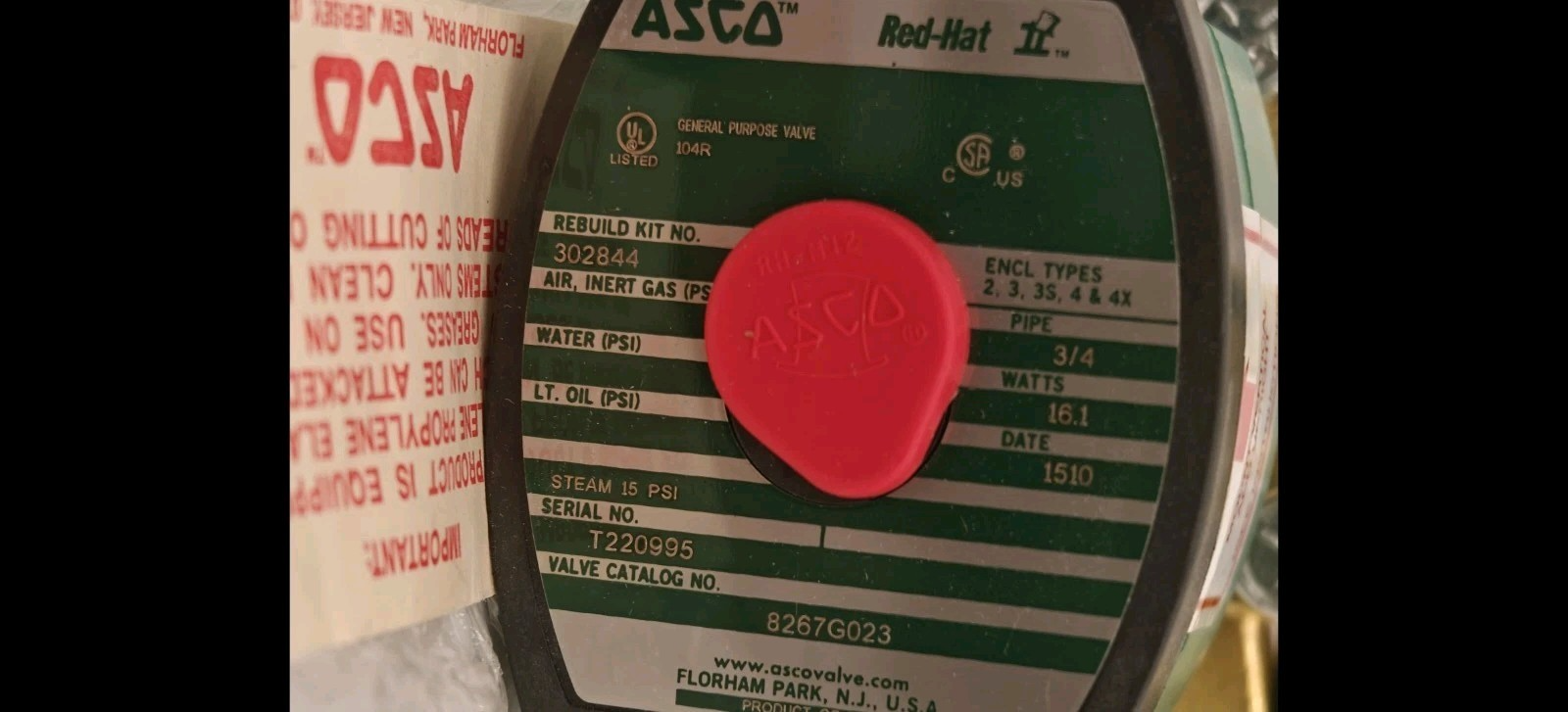

8267G023
UNSPSC
40141605
Country of Origin
Mexico (subject to change)


2-way/2-position steam and hot water solenoid valves have an inlet and an outlet port and operate in two states or positions: open or closed. Normally open solenoids remain open until energized to close and restrict flow.
