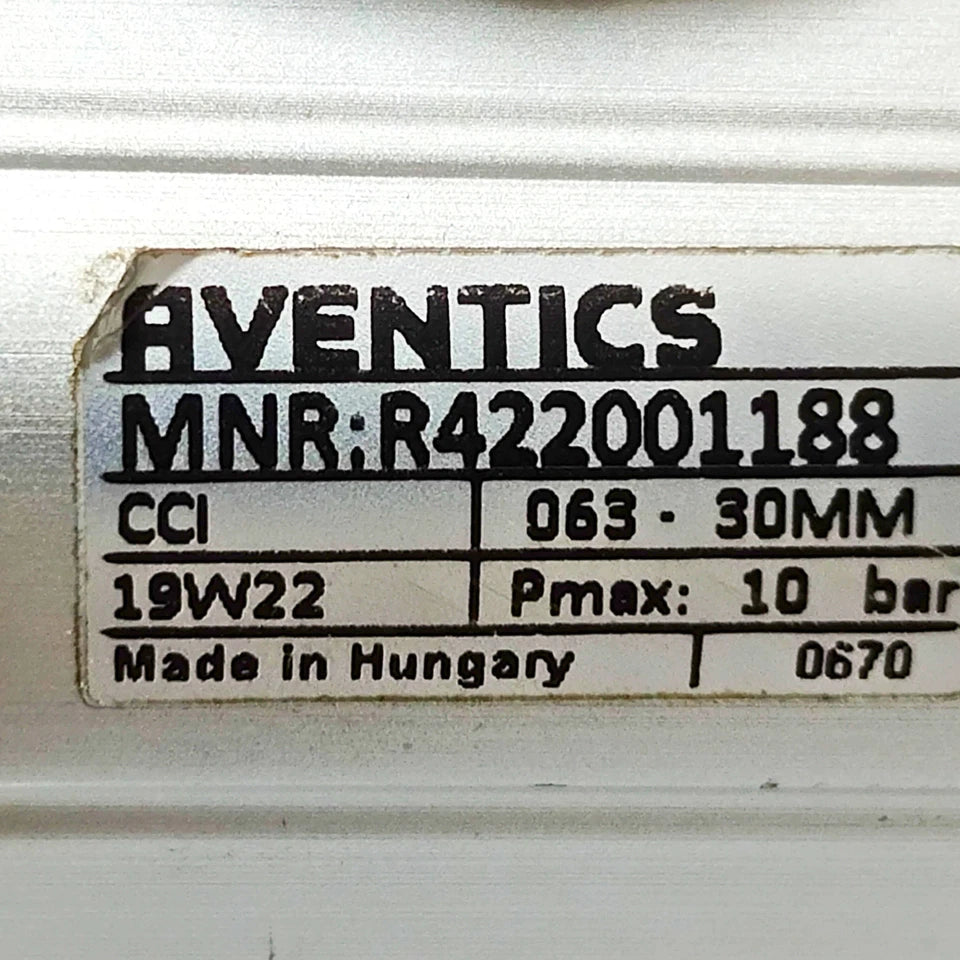

AVENTICS Compact Cylinder ISO 21287, Series CCI R422001188 [063 - 30MM] [19W22]

AVENTICS Compact Cylinder ISO 21287, Series CCI R422001188 [063 - 30MM] [19W22]

$149.99
$149.99
Sale Sold out
Shipping calculated at checkout.

Compact cylinder ISO 21287, Series CCI

Attribute Code Description
Series CCI Series CCI
Version DA Double acting
Piston diameter 063 Diameter 63
Stroke 0030 Stroke in mm
ATEX 00 Standard
Function 4 Double acting
Cushioning 1 Elastic cushioning
Piston 2 With magnetic piston
Piston rod 2 Single rod
Cylinder tube 4 Aluminum, anodized
Seals 1 Standard sealing

Standards: ISO 21287

Certificates: ATEX optional

Compressed air connection: Internal thread

Working pressure min./max.: 1 ... 10 bar

Ambient temperature min./max.: -20 ... 80 °C

Medium temperature min./max.: -20 ... 80 °C

Medium: Compressed air

Max. particle size: 50 µm

Oil content of compressed air: 0 ... 5 mg/m³

Pressure for determining piston forces: 6.3 bar

Compact cylinder: ISO 21287, Series CCI-Ø 16-100 mm-Ports M5 G 1/8-double-acting-with magnetic piston-Cushioning elastic-Piston rod External thread-ATEX optional

NOTE: While every effort has been made to ensure the accuracy of the information provided, buyers are advised to refer to the manufacturer's documentation or official website for detailed specifications.

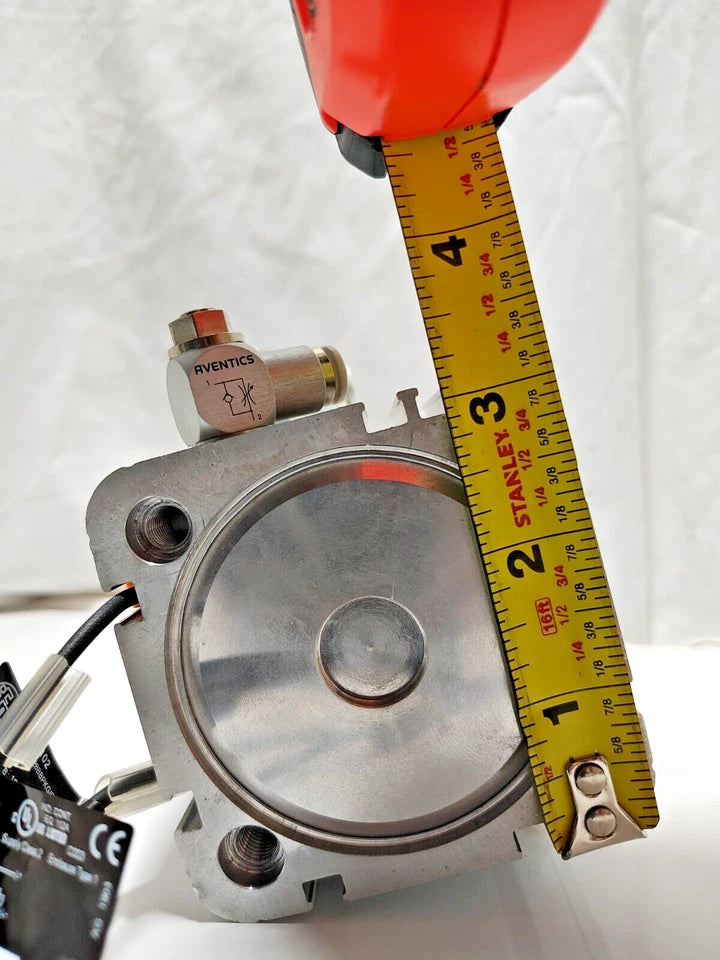

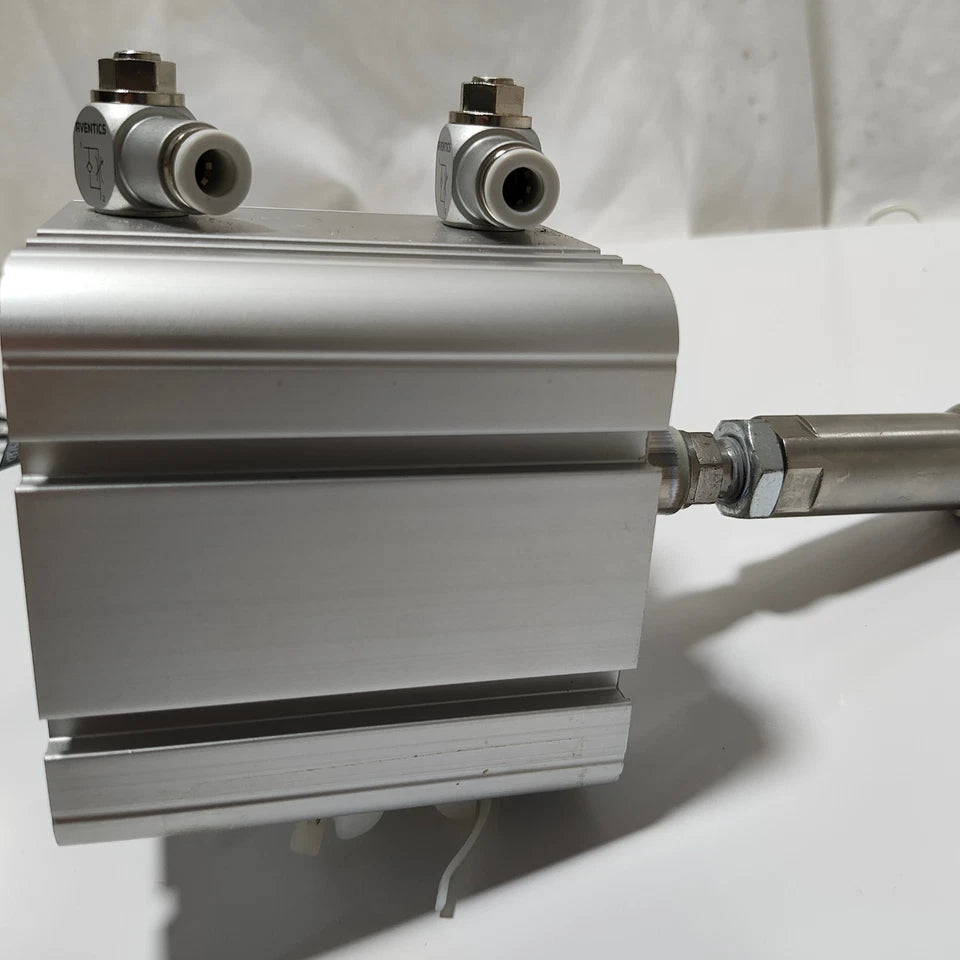

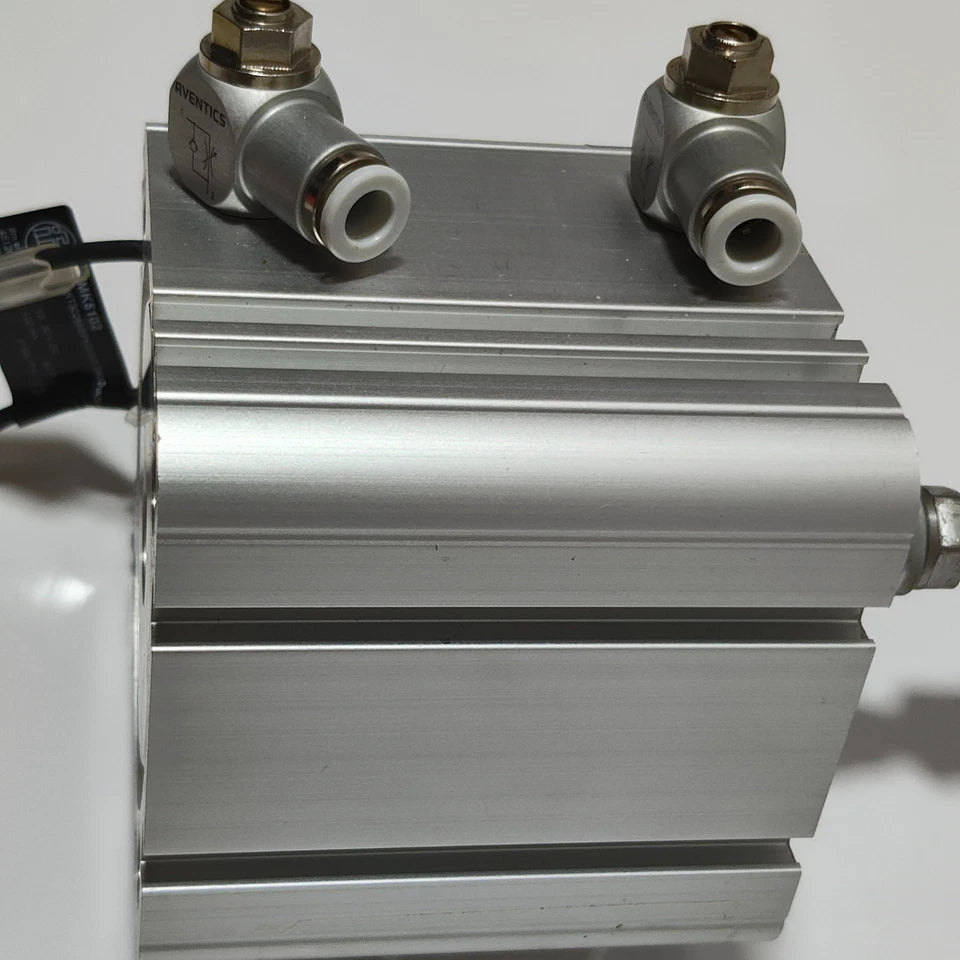

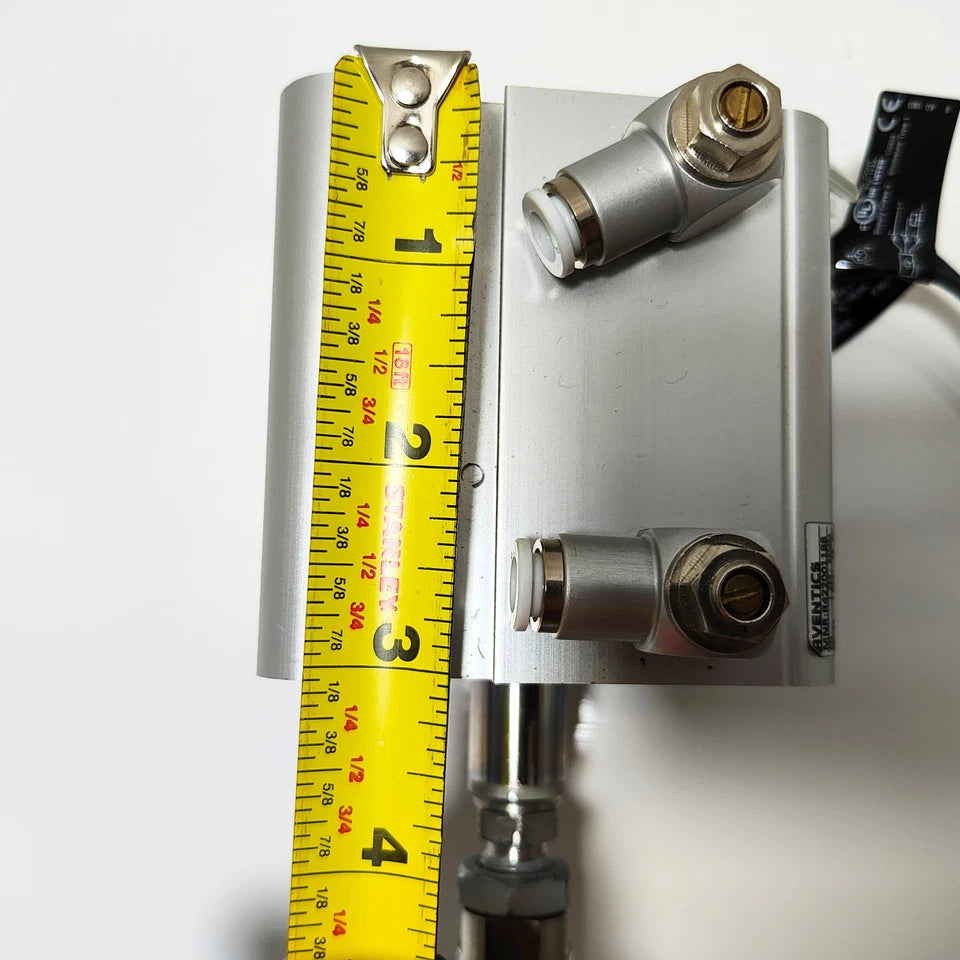

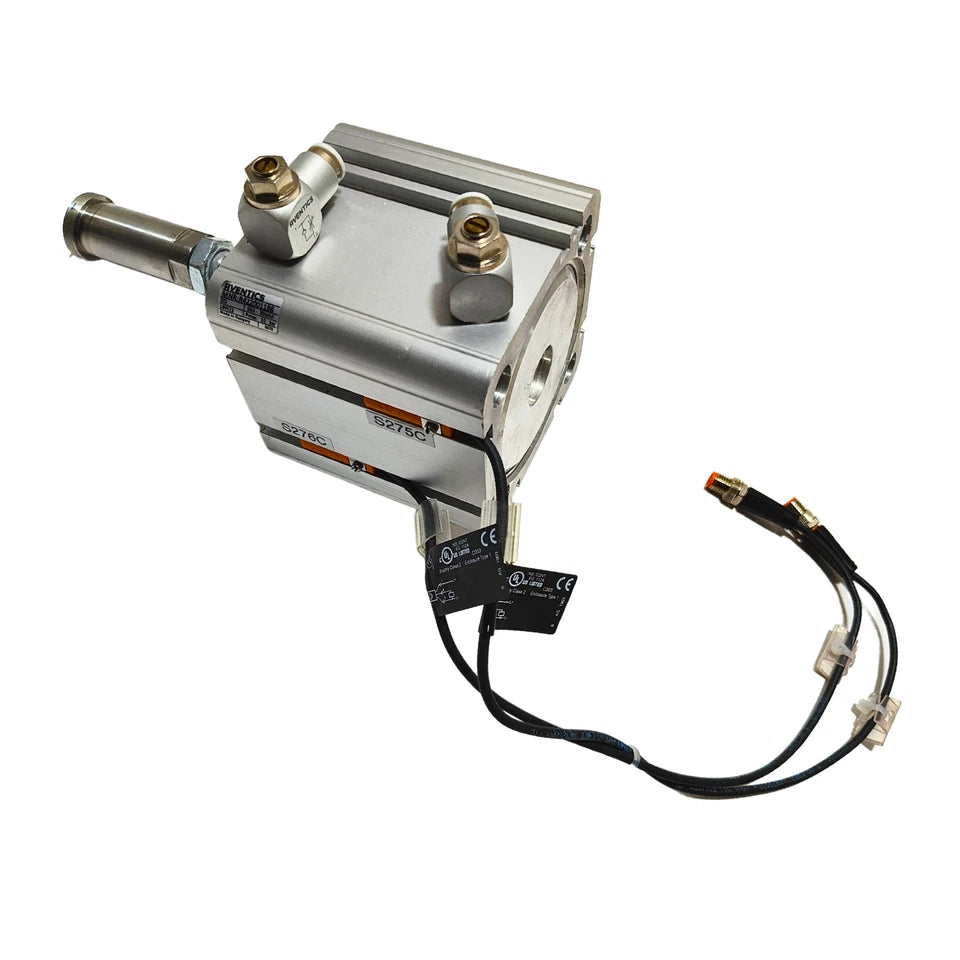

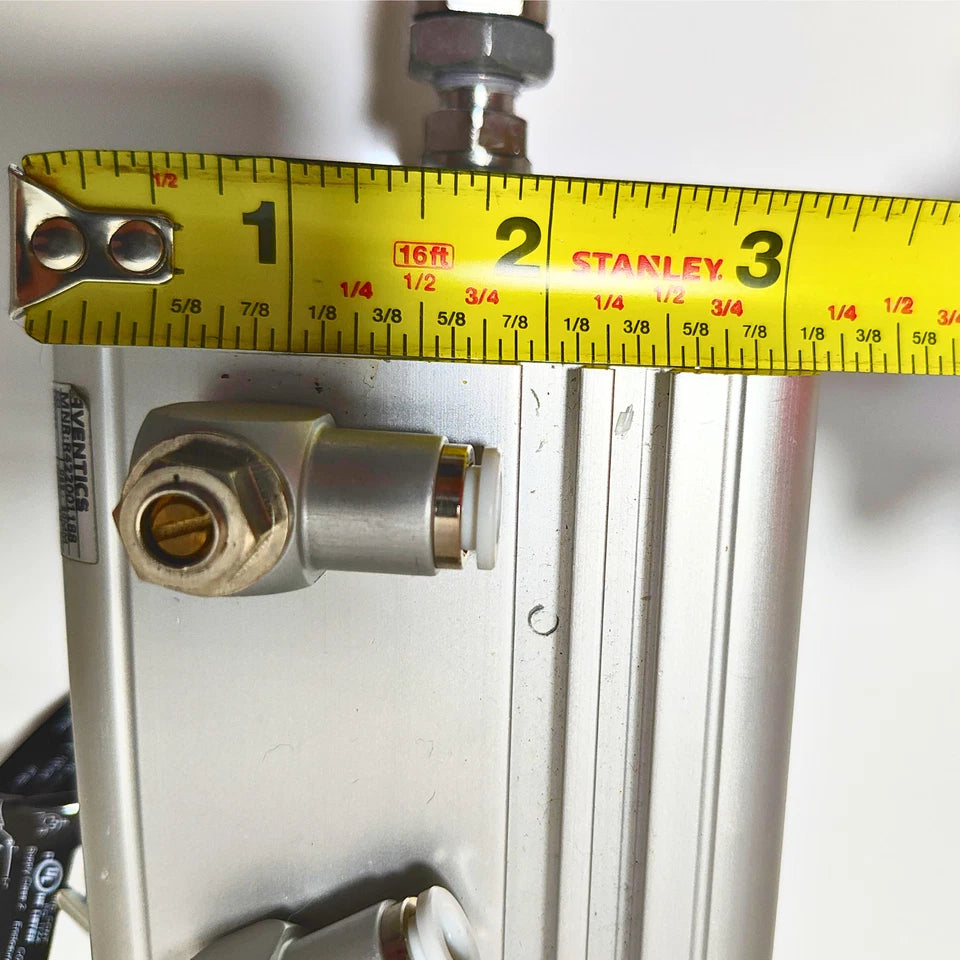

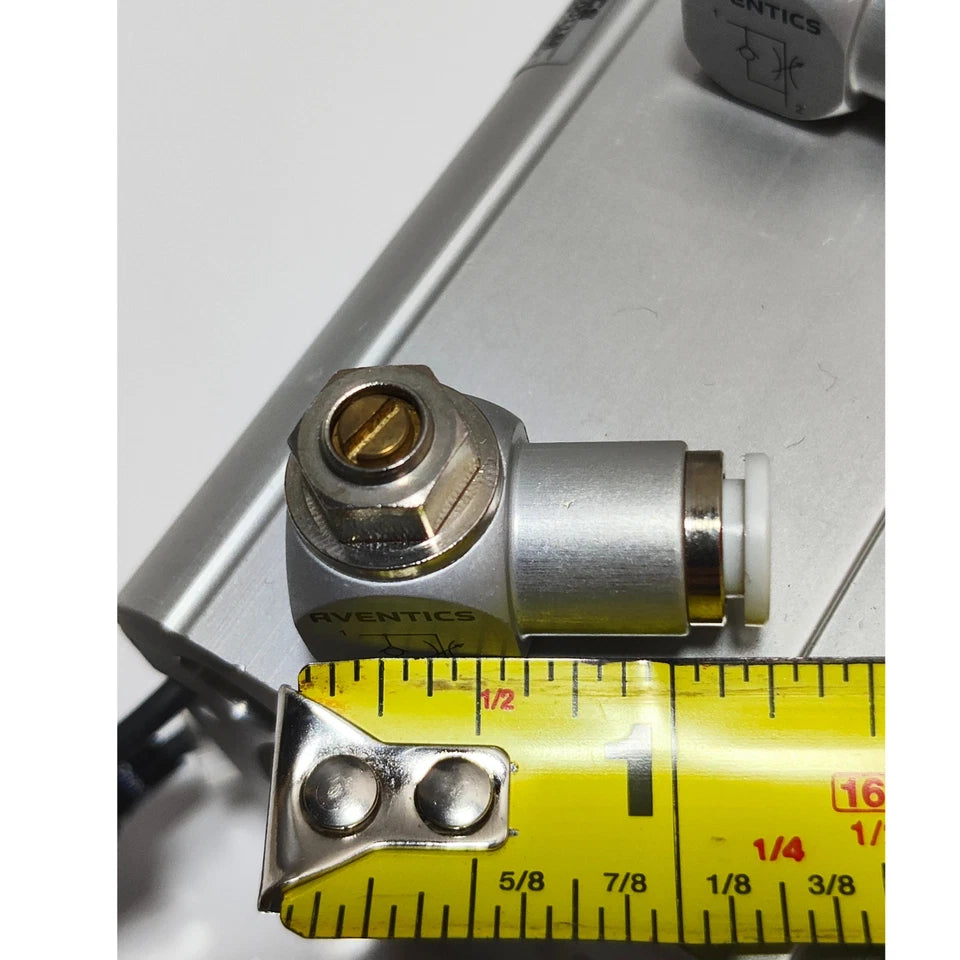

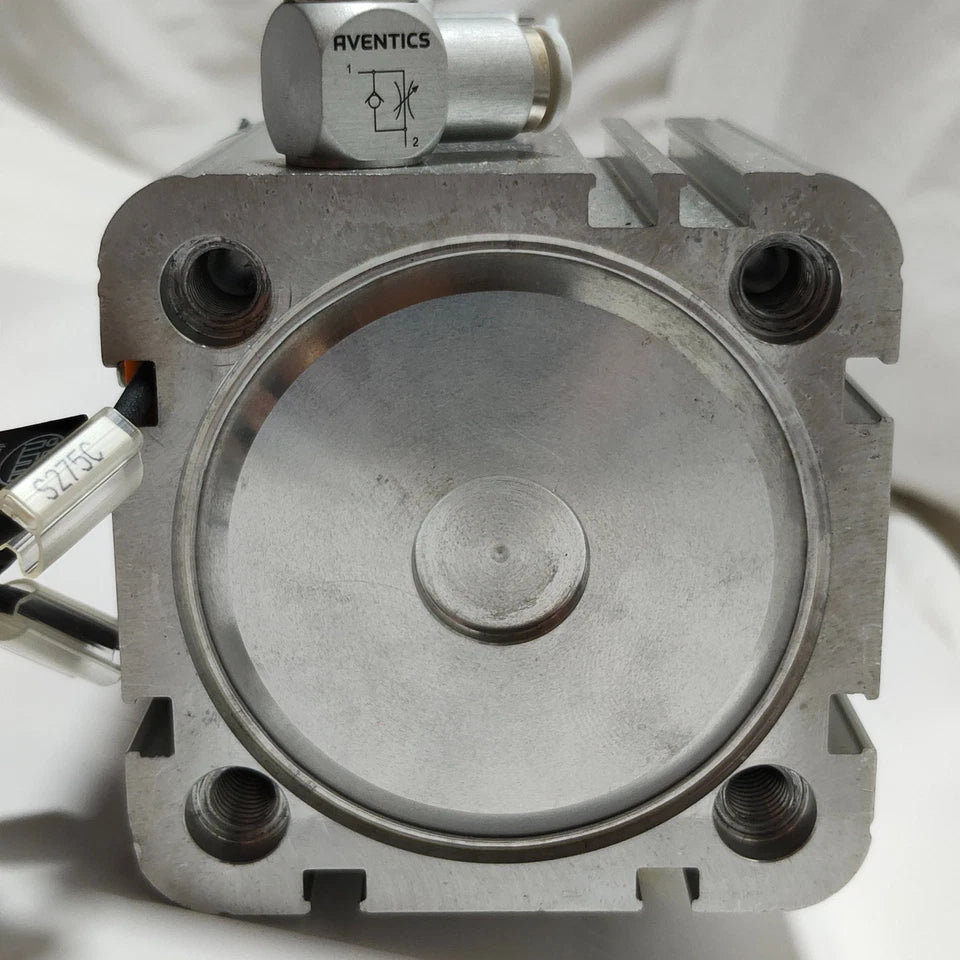

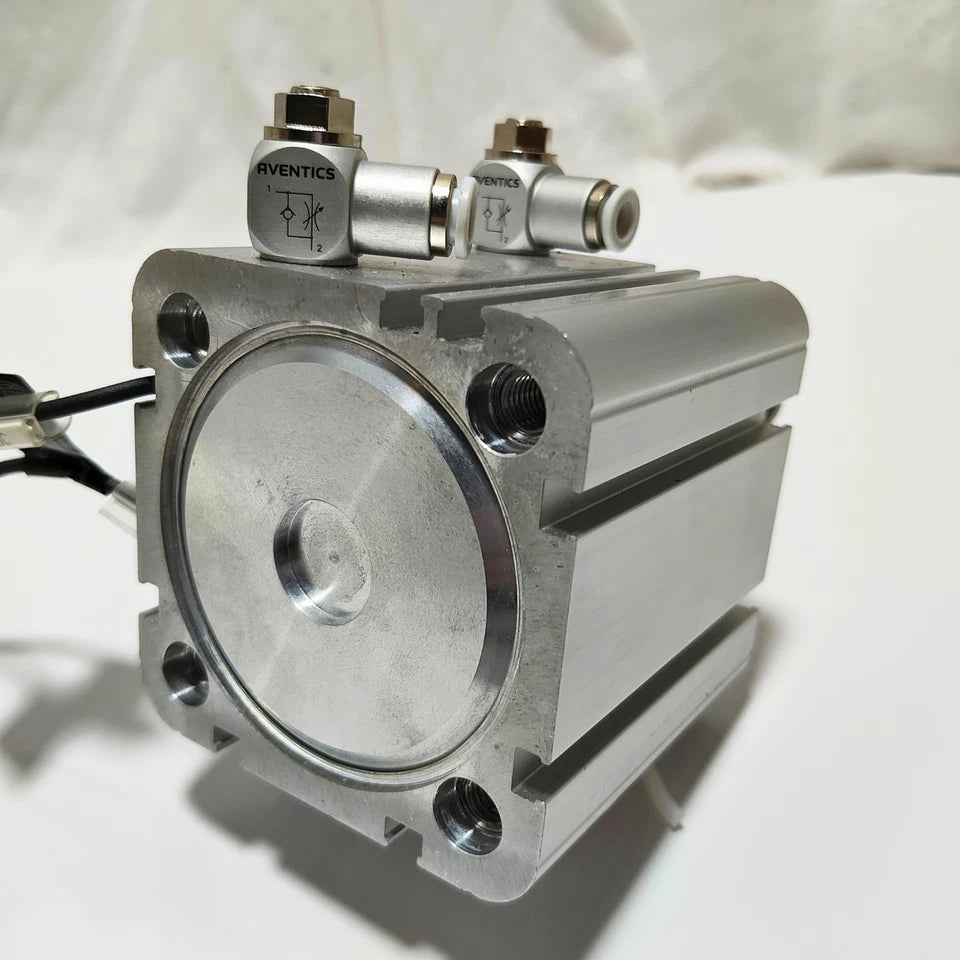

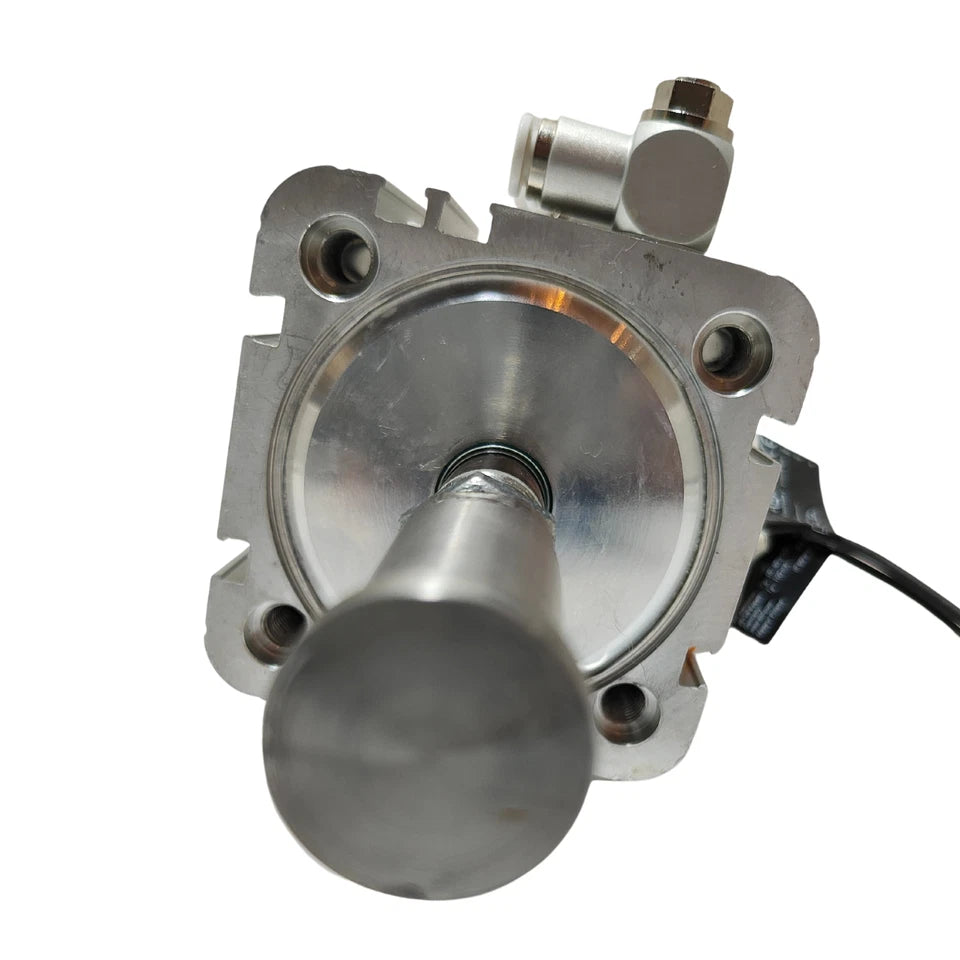

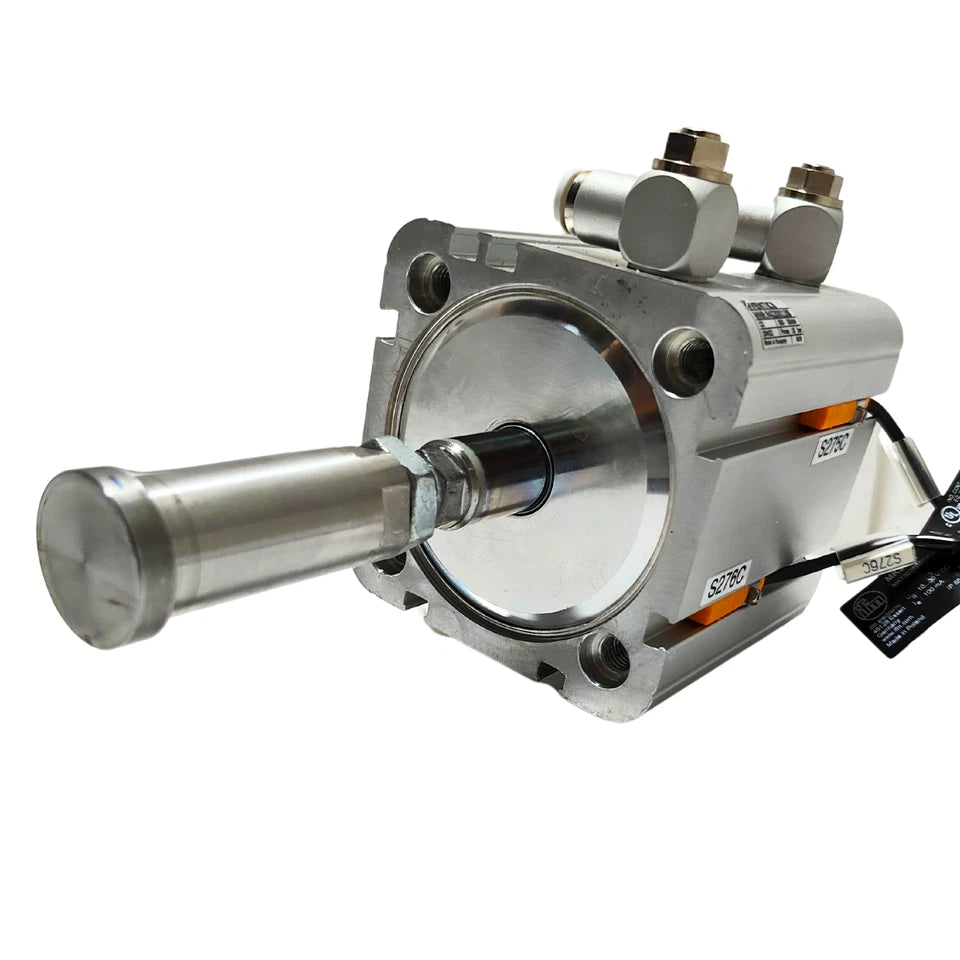

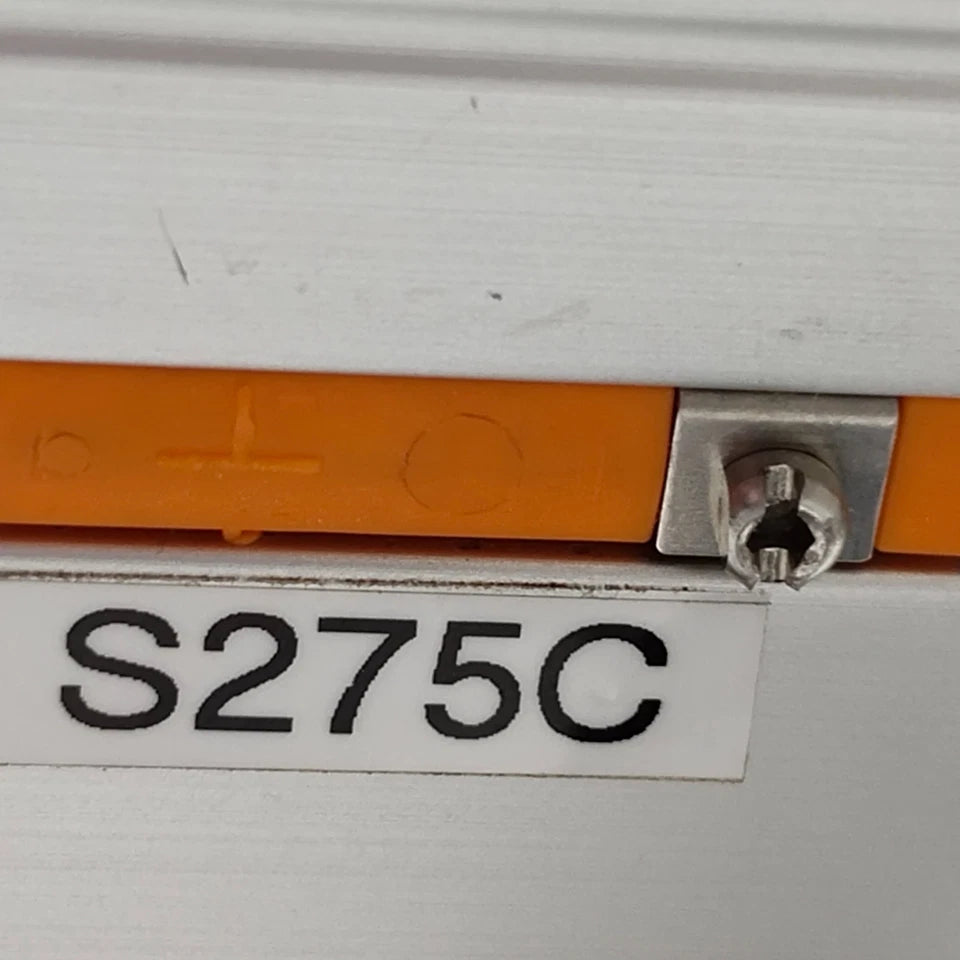

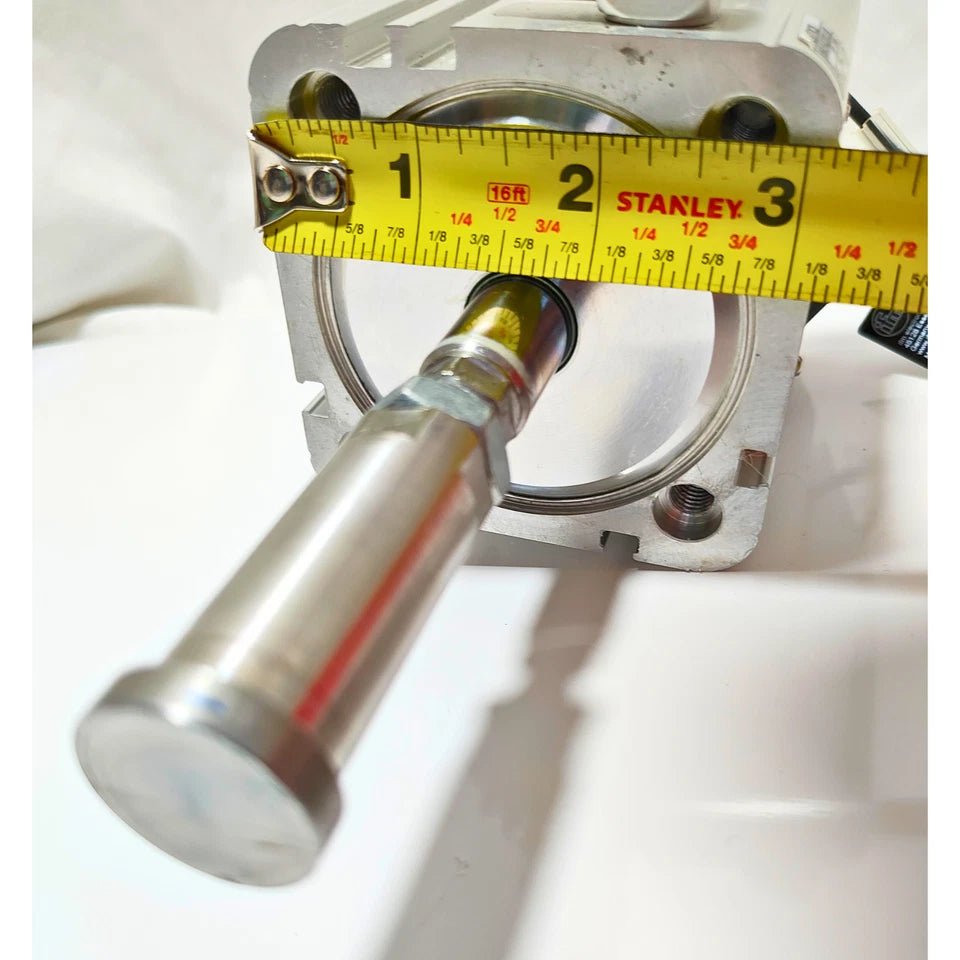

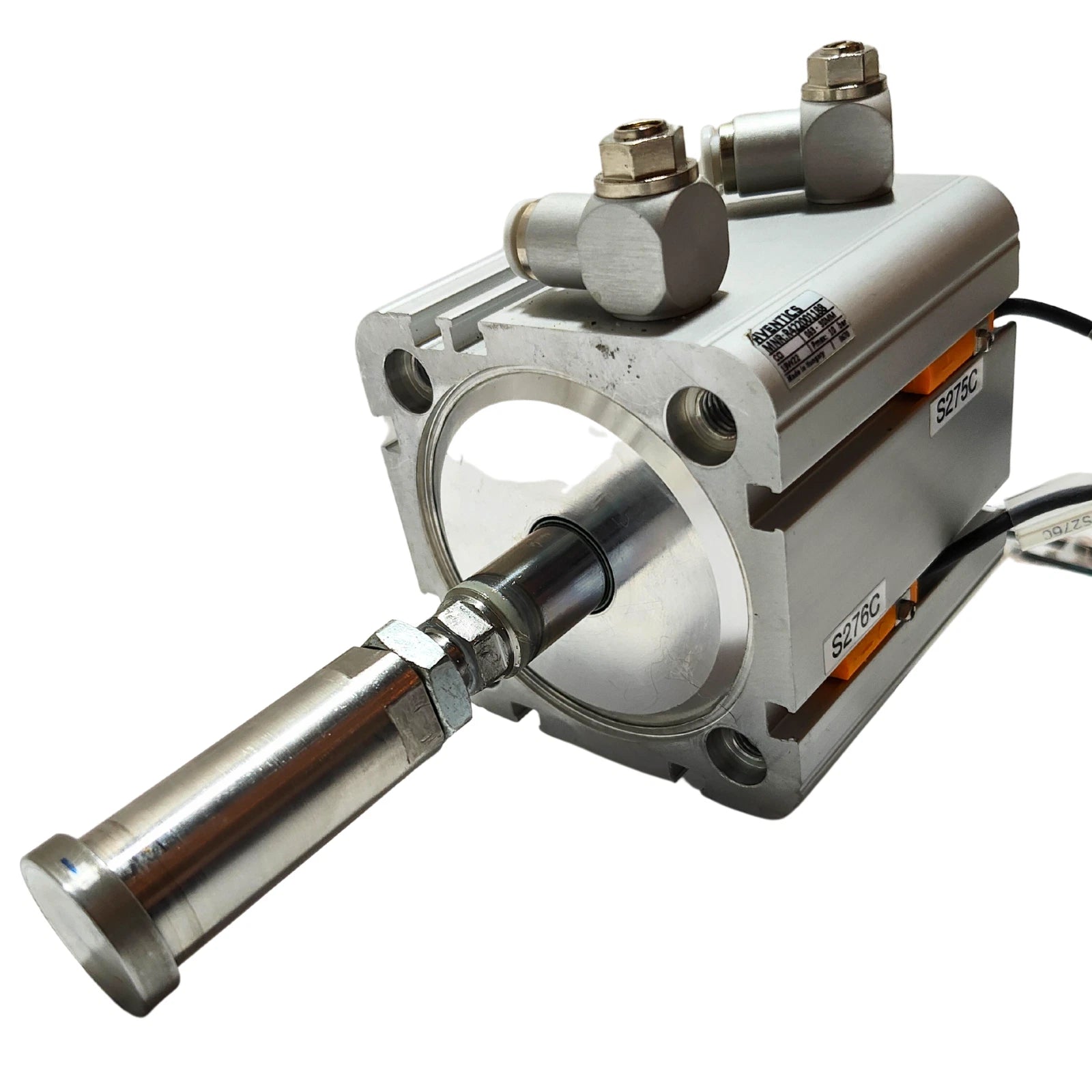

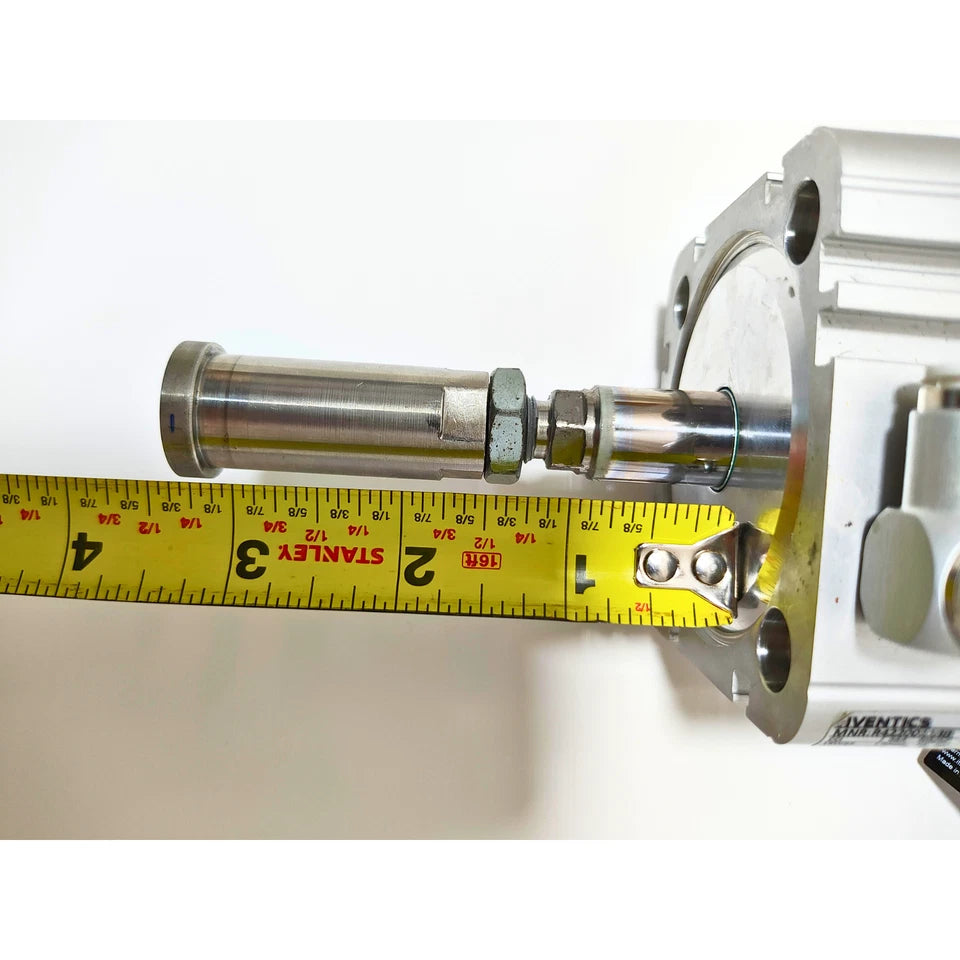

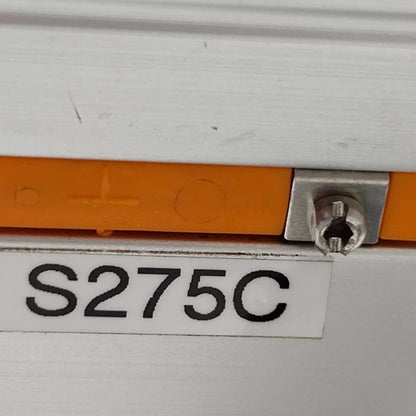

Pre-owned | 100% Functionality Guaranteed | (4x) Mounting Bolts and (2x) T-Slot Cylinder Sensors Included | For Exact Details & Measurements Please Refer To Photos.
