Bio-Rad PowerPac Basic Power Supply 300V 400mA 75W Electrophoresis
Bio-Rad PowerPac Basic Power Supply 300V 400mA 75W Electrophoresis
Couldn't load pickup availability
Bio-Rad PowerPac™ Basic Power Supply - NEW OPEN BOX
The Bio-Rad PowerPac™ Basic Power Supply is designed for reliable, everyday electrophoresis applications. It is recommended for submerged horizontal and mini vertical gel electrophoresis, providing precise control with constant-voltage or constant-current output.
This unit features a compact, stackable design with an easy-to-read LED display, timer control, and the ability to pause and resume runs, making it ideal for routine laboratory workflows.
Key Features:
-
Constant Voltage or Current: Easily toggle between constant voltage or constant current to suit your specific electrophoresis application.
-
Simultaneous Operation: Equipped with four pairs of output jacks, allowing you to run multiple gel boxes at the same time.
-

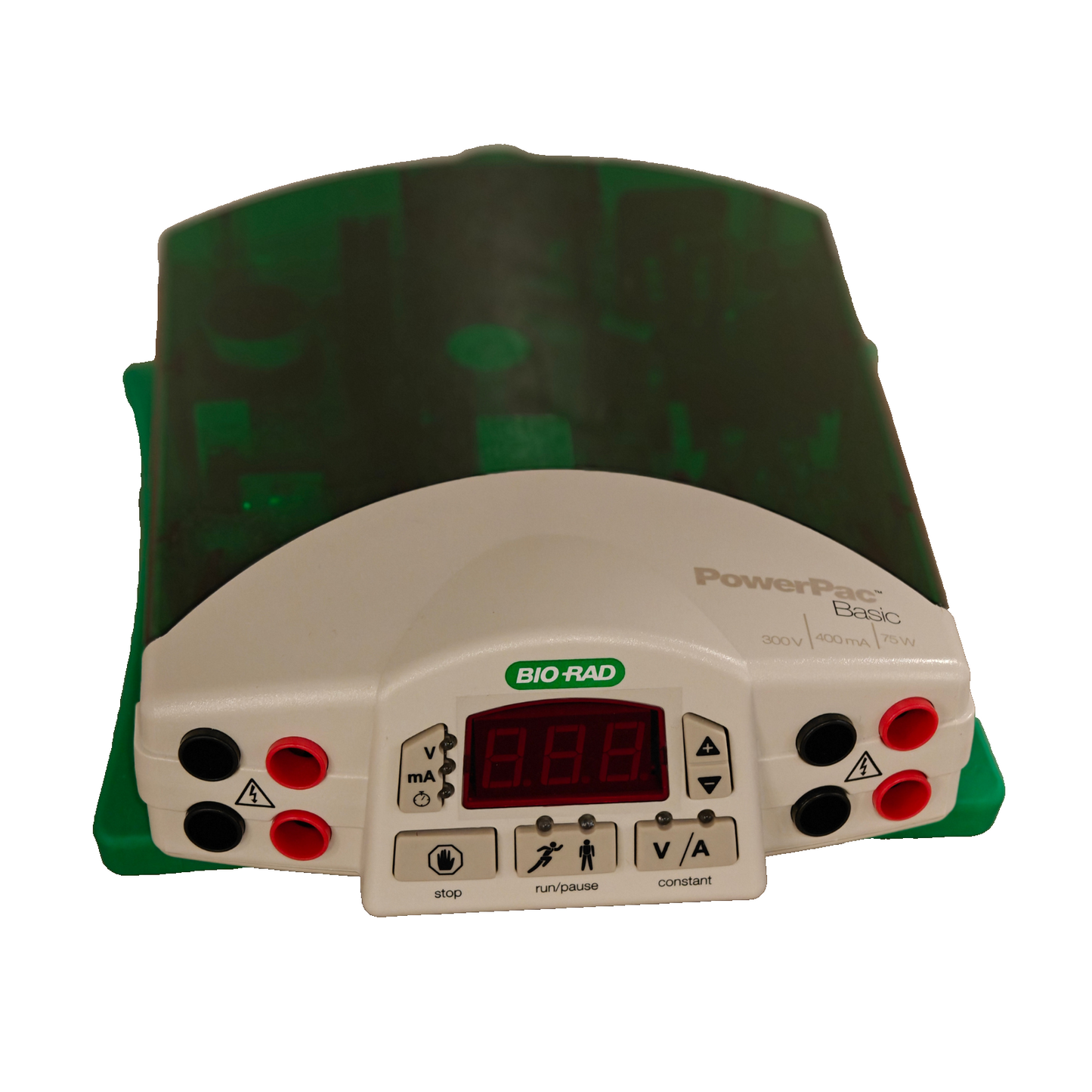

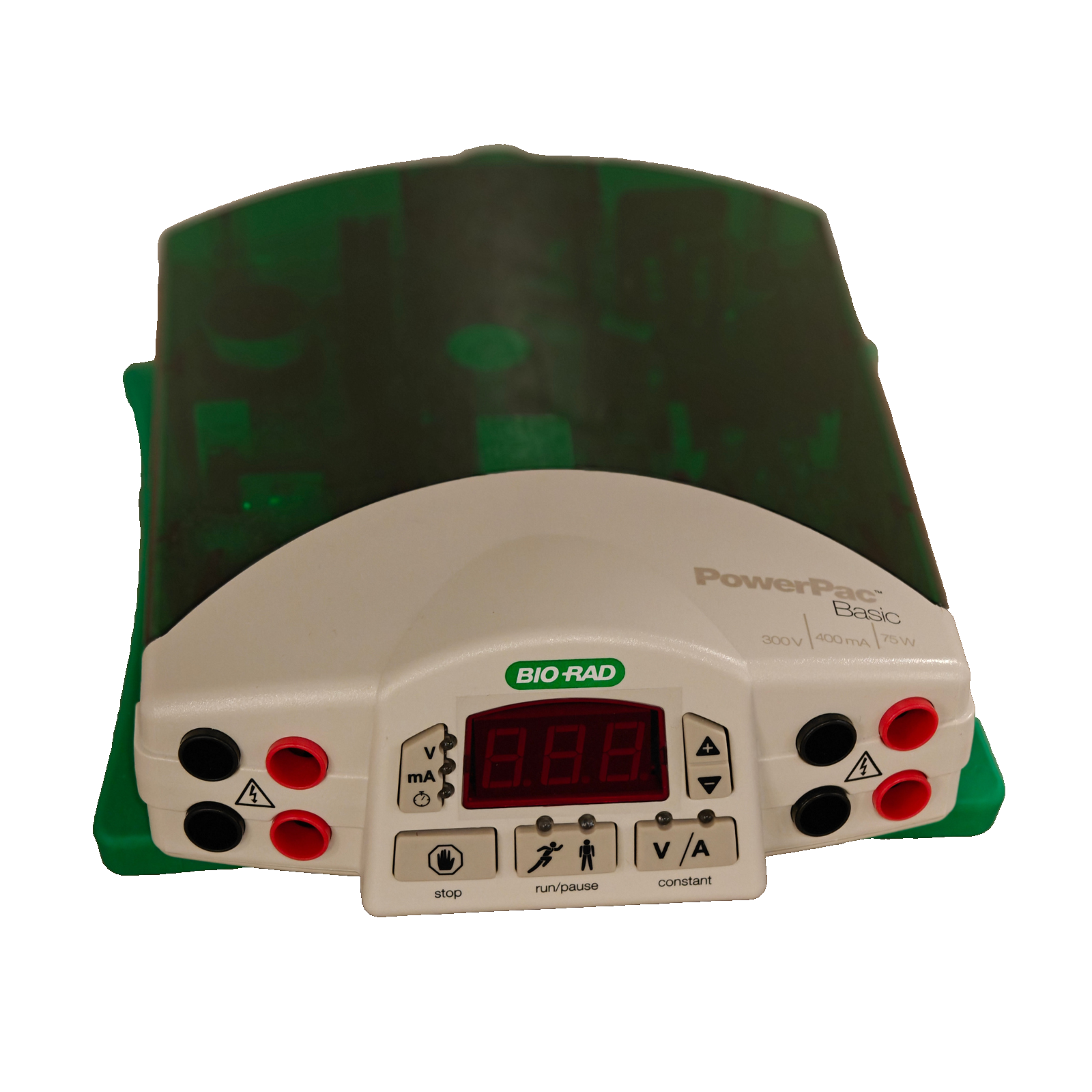

User-Friendly Interface: Features a clear LED display and intuitive membrane keypad for quick setup and monitoring.
-
Built-in Safety: Includes automatic crossover, overload/short circuit protection, and safety compliance features.
-
Compact Design: Lightweight, highly portable, and designed with a transparent green safety cover.
| Specification | Details |
|---|---|
| Model | PowerPac™ Basic |
| Output Voltage Range | 10-300 V (adjustable in 1 V steps) |
| Output Current Range | 4-400 mA (adjustable in 1 mA steps) |
| Maximum Output Power | 75 W |
| Output Type | Constant voltage or constant current with automatic crossover |
| Output Terminals | 4 pairs of recessed banana jacks (parallel) |
| Timer Range | 1 min - 99 hr 59 min (fully adjustable) |
| Pause / Resume Function | Yes |
| Display | 3-digit LED |
| Operating Conditions | 0-40°C, 0-95% humidity (non-condensing) |
| Safety Features | No-load detection, sudden load change detection, overload/short-circuit detection, overvoltage protection |
| Input Protection | Fuse on both hot and neutral |

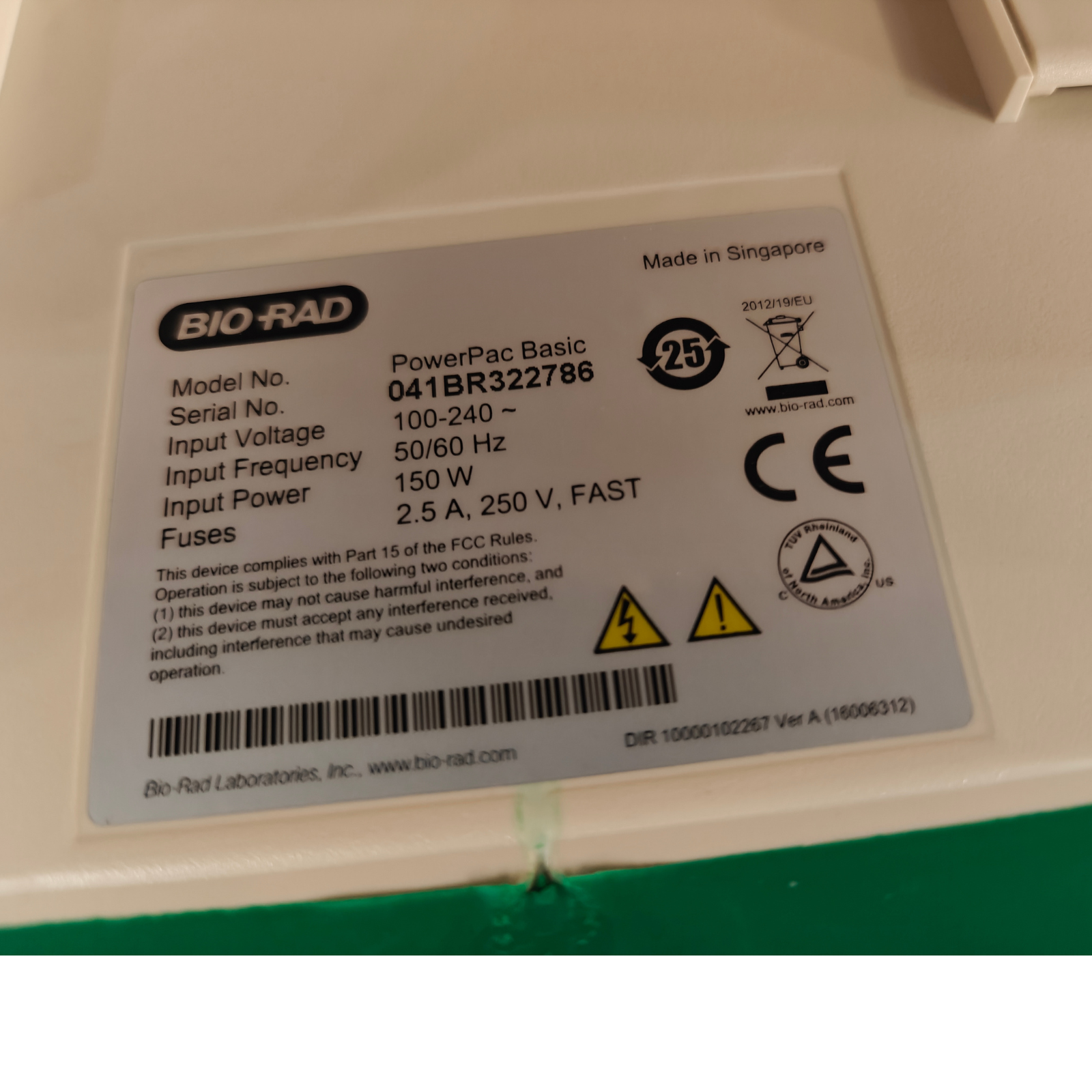

| Input Power | 90-120 or 198-264 VAC, 50/60 Hz (autoswitching) |
| Regulatory Compliance | EN-61010, CE |
| Dimensions (W × L × H) | 21 × 24.5 × 6.5 cm / 8.3 × 9.6 × 2.6 in |
| Weight (kg/lb) | Approx. 1.1 / 2.4 |
