Brady

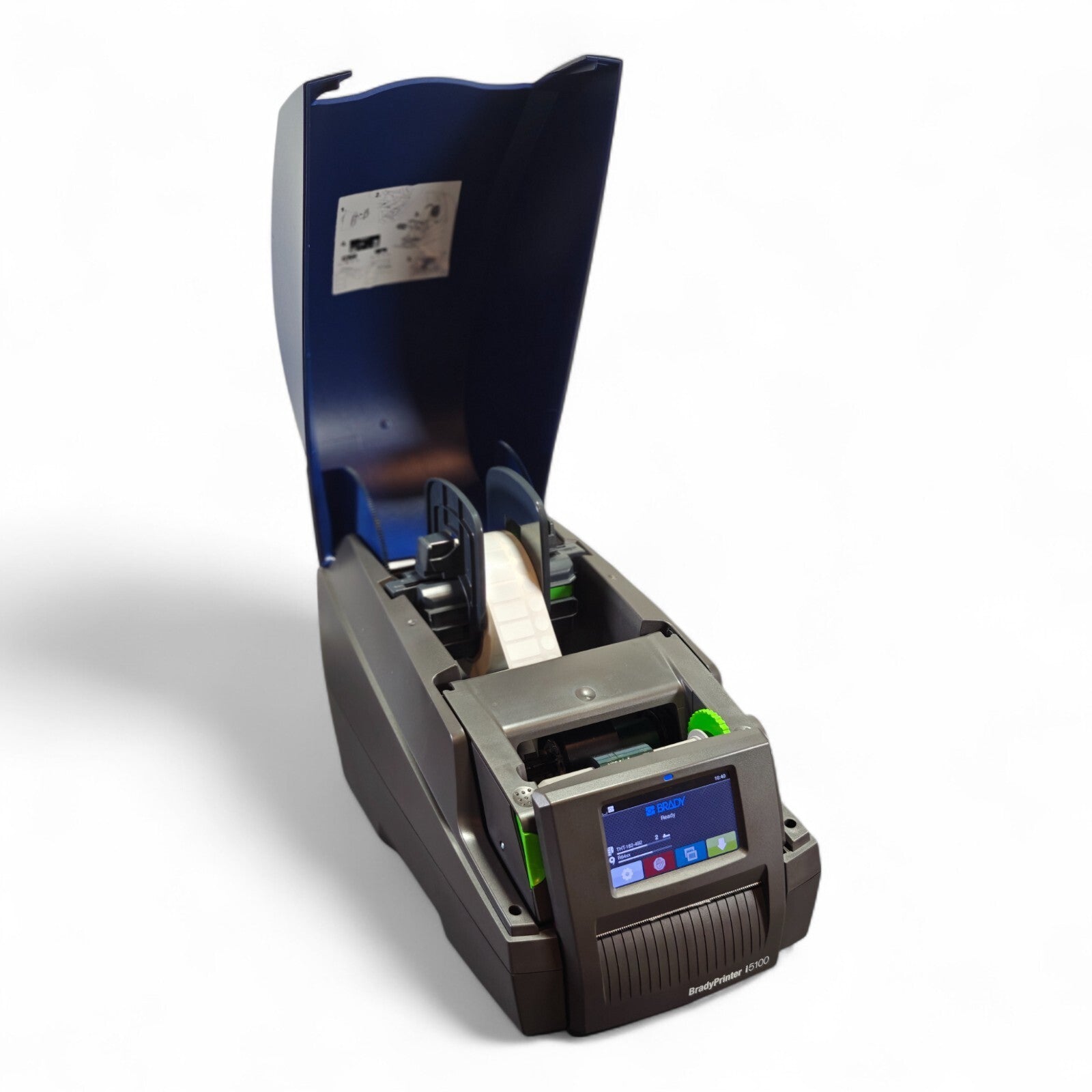

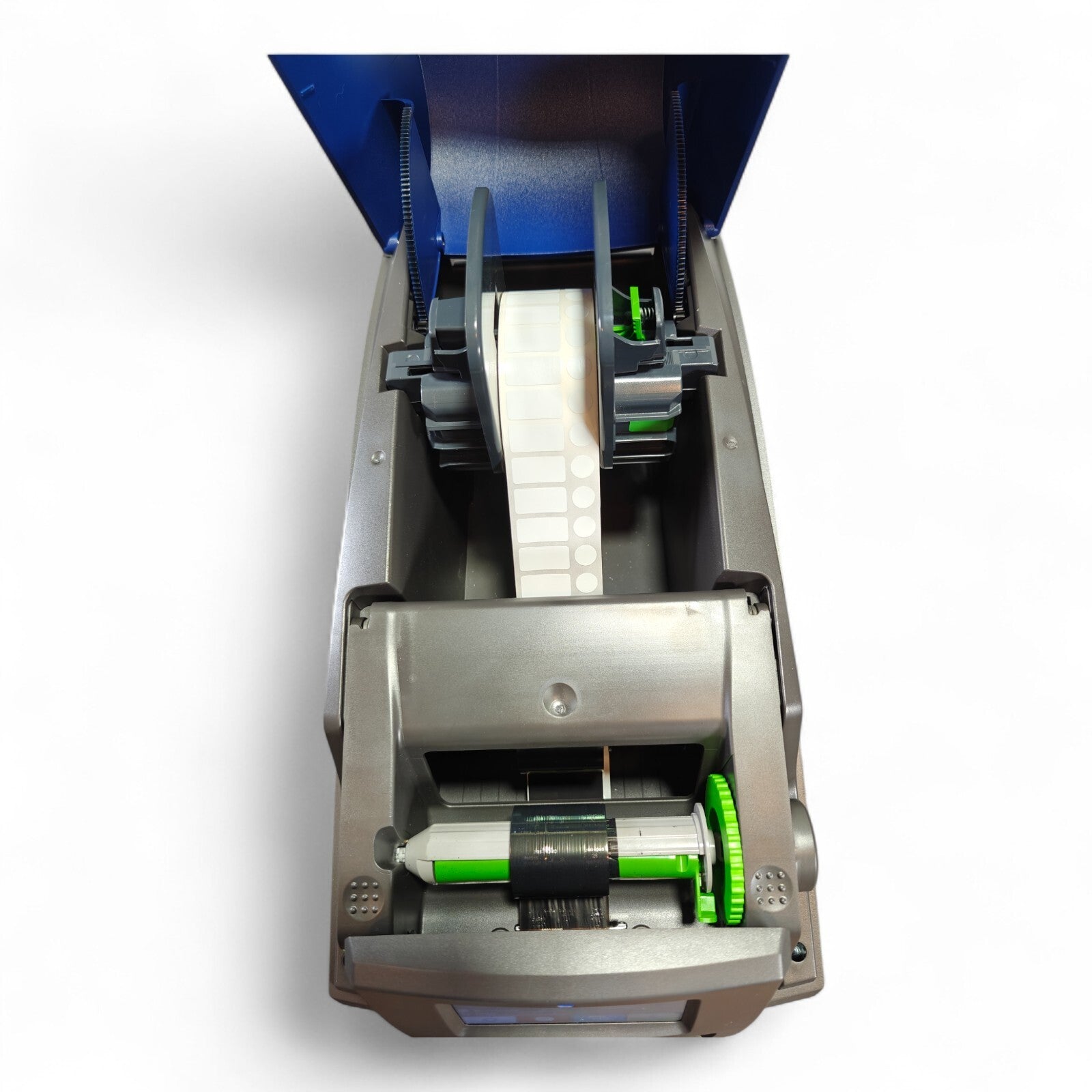

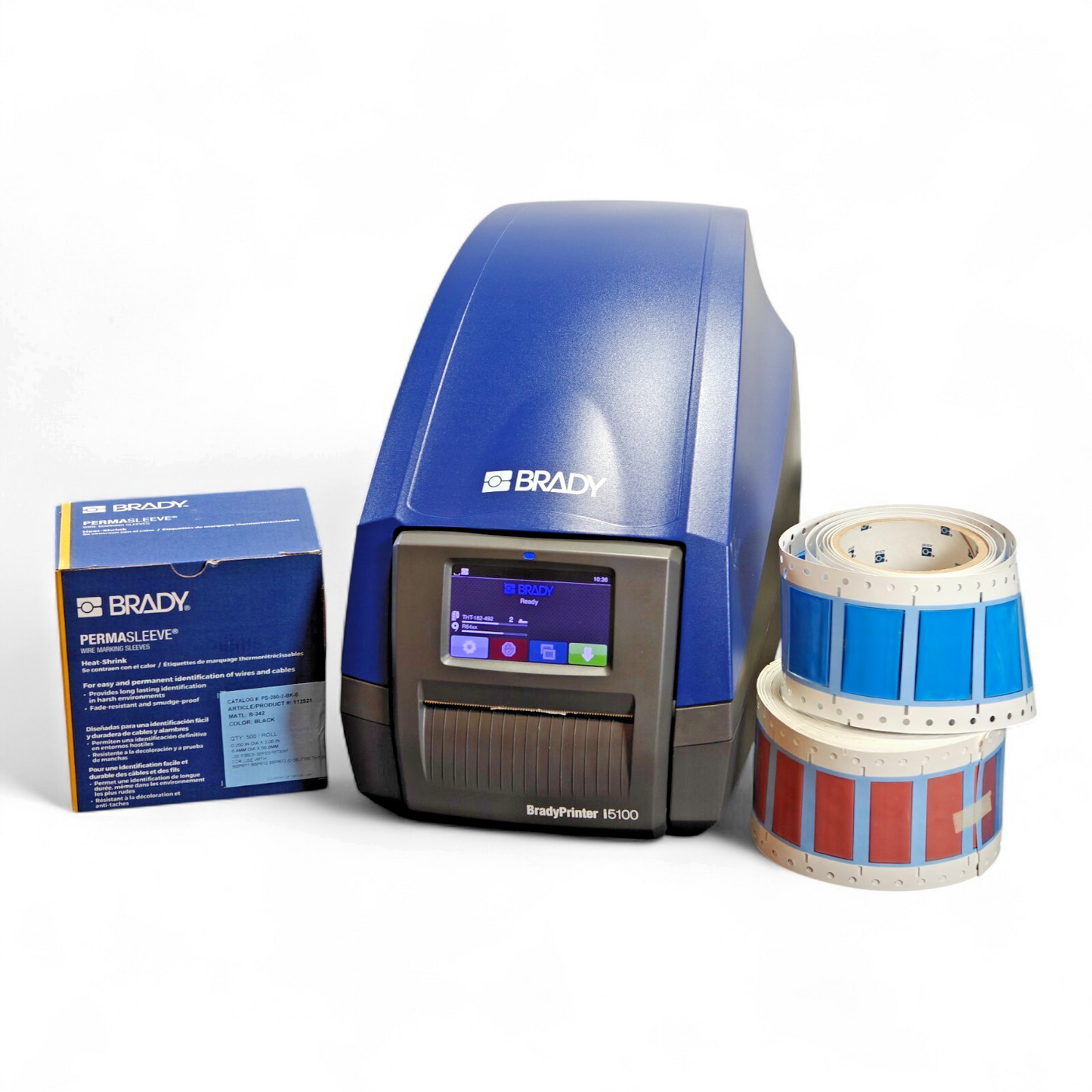

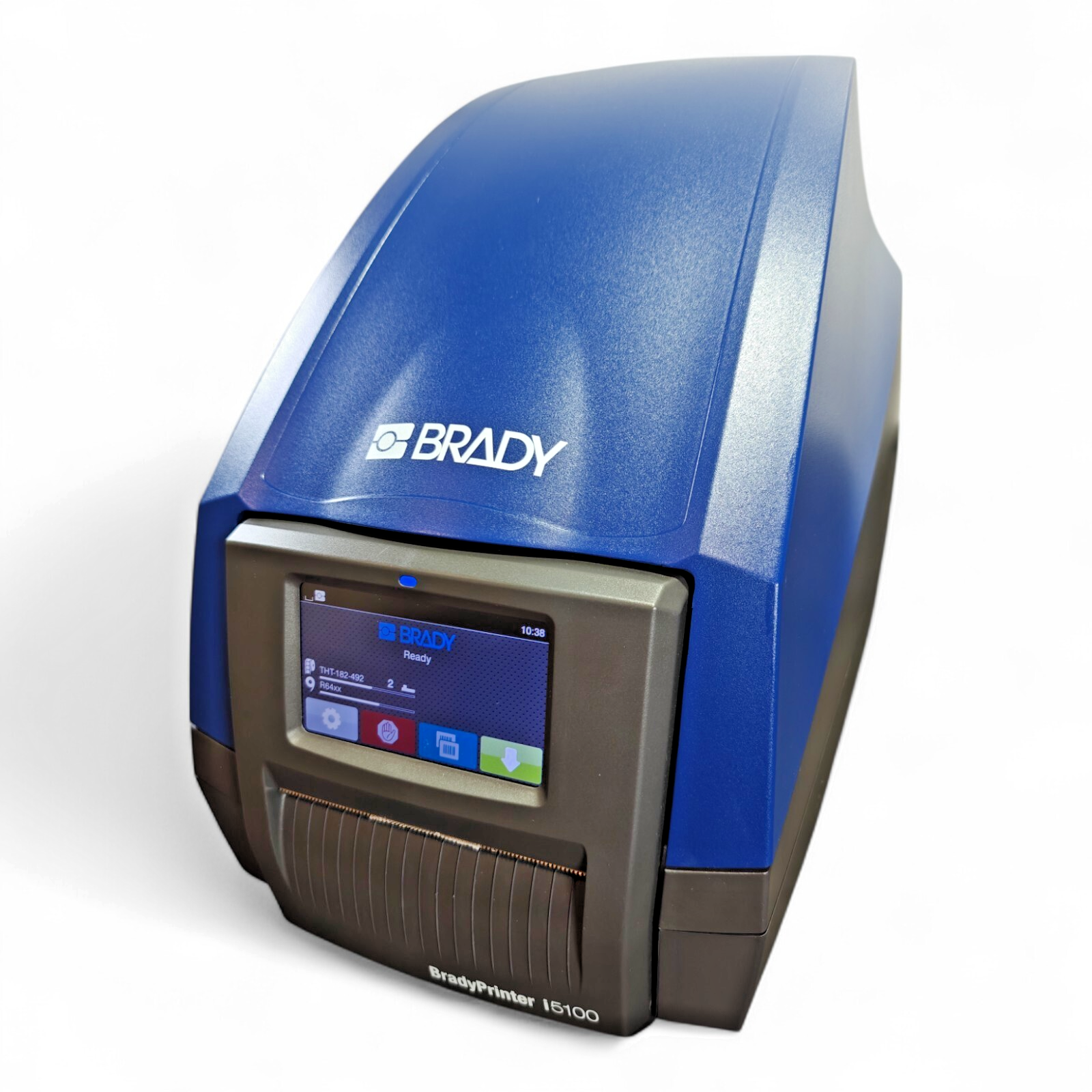

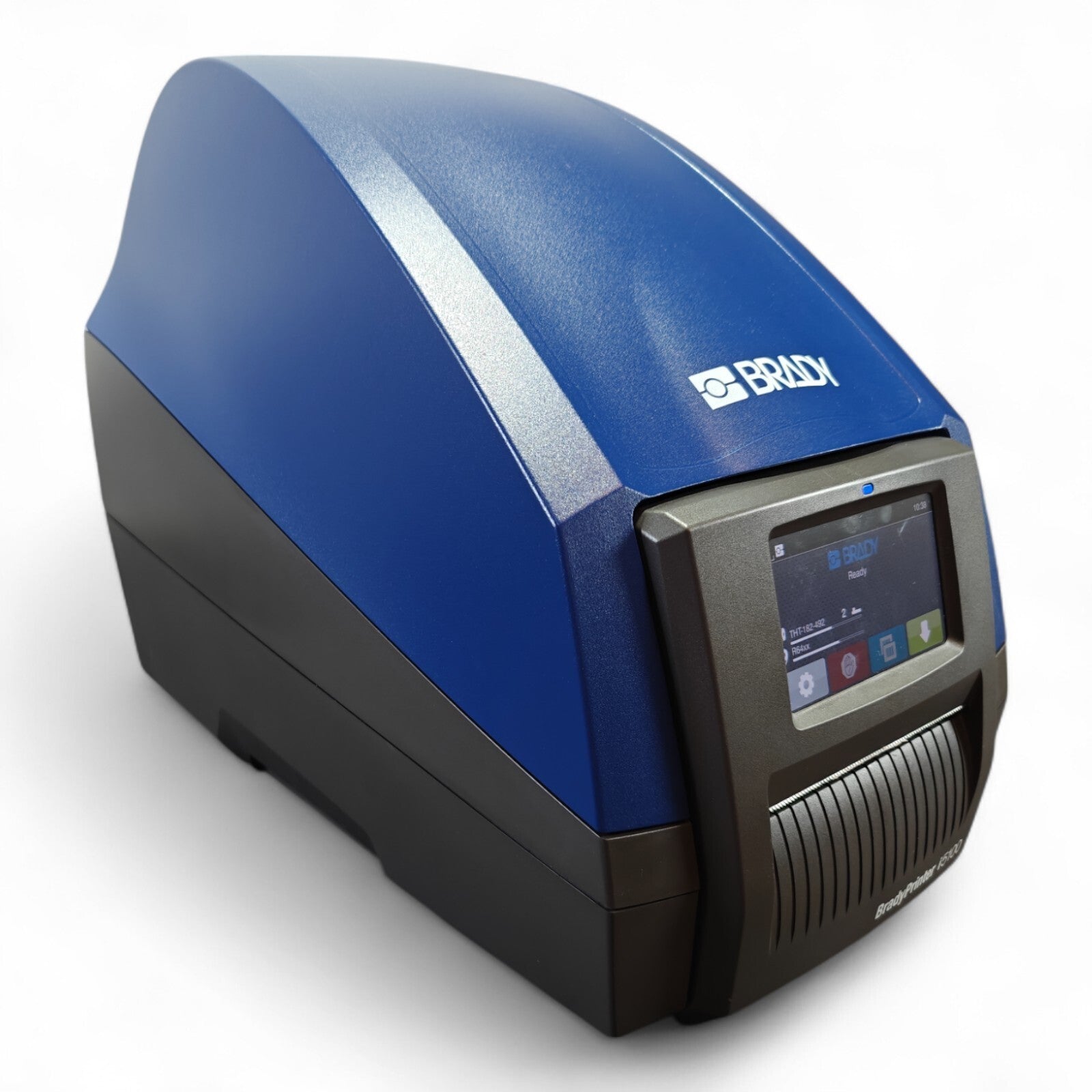

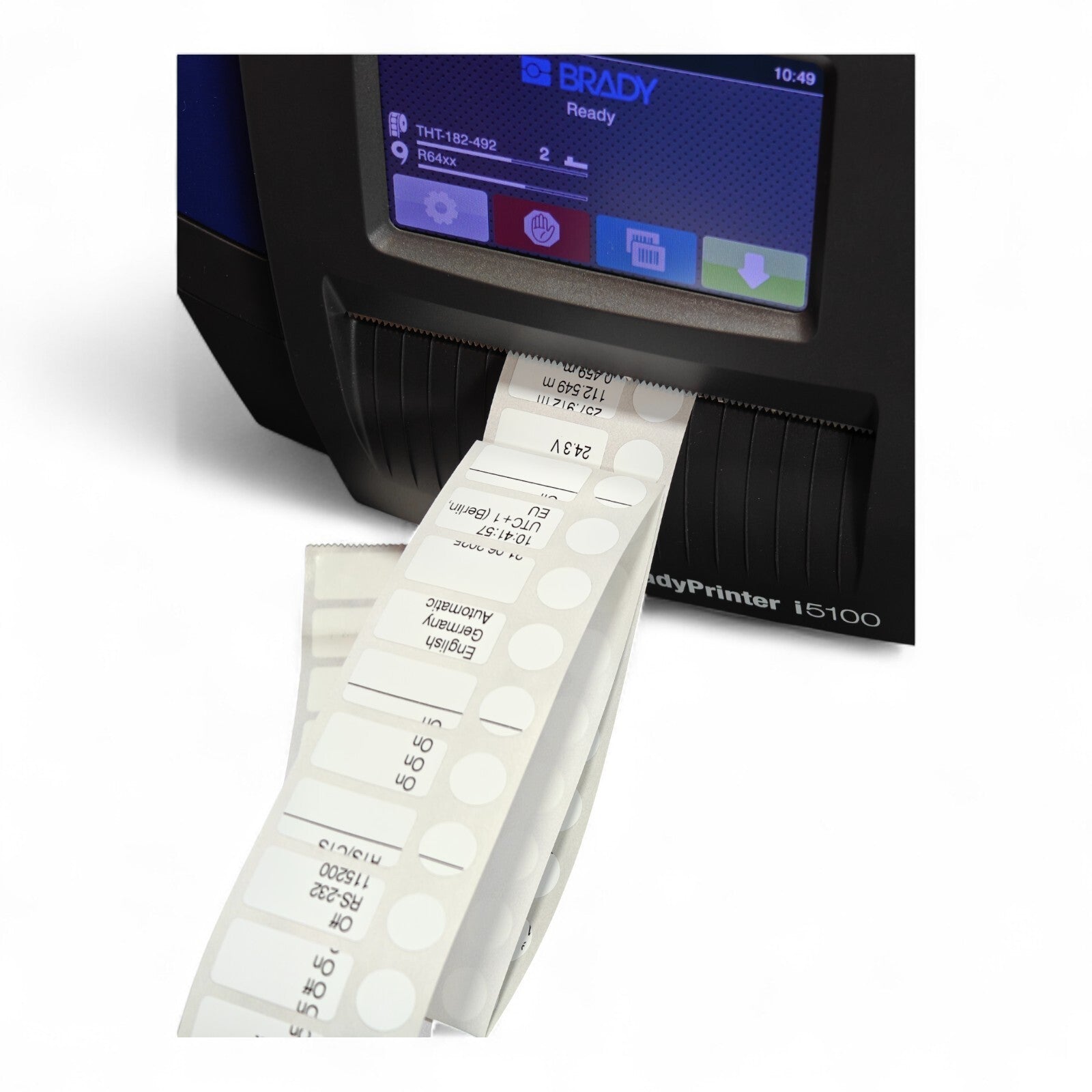

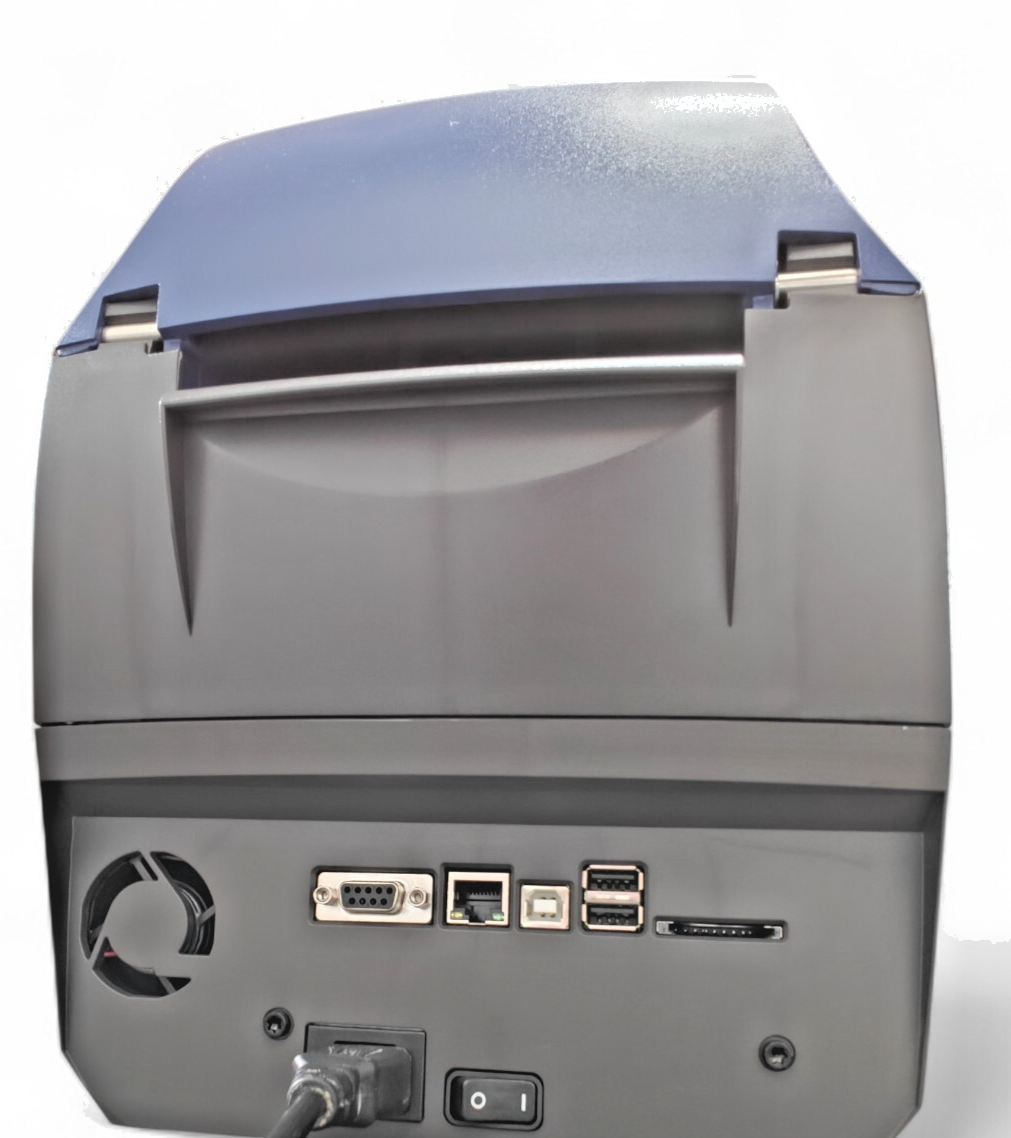

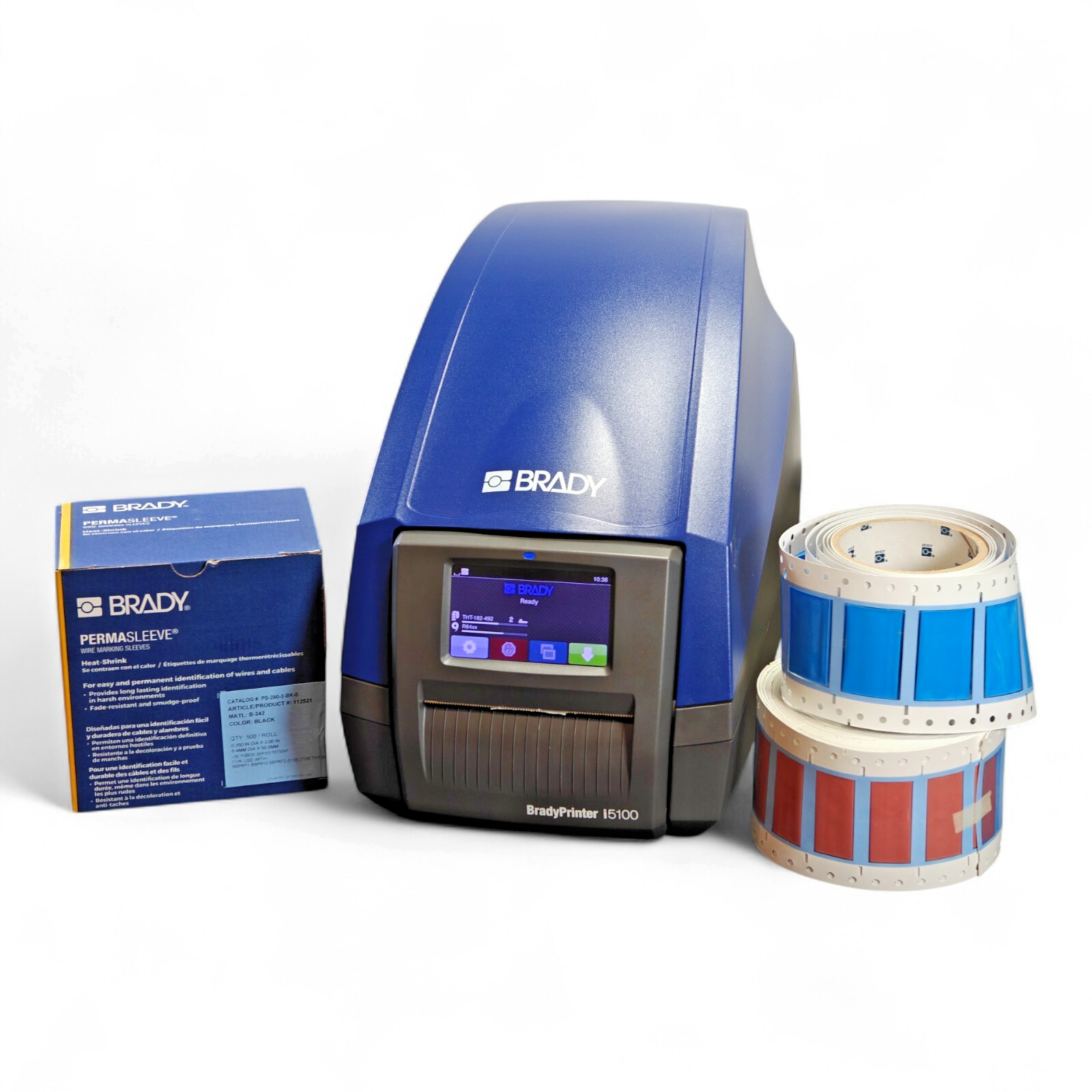

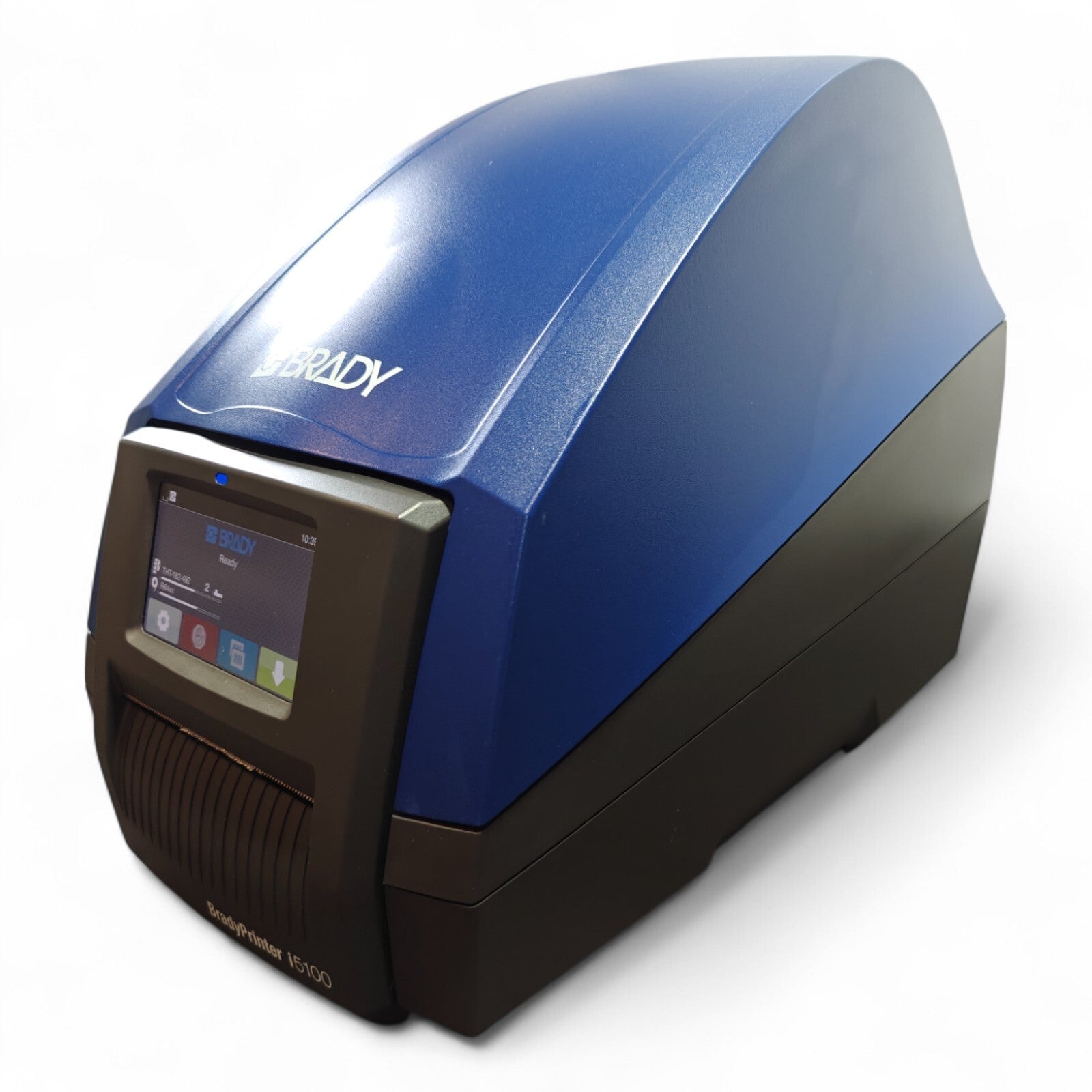

BRADY i5100 Label Printer, 300 dpi, Thermal Transfer, with Assorted Label Rolls

BRADY i5100 Label Printer, 300 dpi, Thermal Transfer, with Assorted Label Rolls

$949.99
$0.00 $949.99
Sale Sold out
Shipping calculated at checkout.

Specifications [BRADY i5100 Industrial Label Printer 300 dpi with Assorted Label Rolls]

Key Characteristics Catalog Page # 140
Prod Number 149452
Product Number 149452
UPC 754473605292
UOM Each
Trade Name BradyPrinter i5100
Brand Name Brady®
Dimensions Dimensions 12.5 in H x 9.5 in W x 17.2 in D
Height 12.5 in
Width 9.5 in
Depth 17.2 in
Core Diameter 3 in
Display Size 2 x 3.6 in
Weight 13.6 lb
Material Characteristics Color Blue, Gray
Product Features Application Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling
Connectivity Options Bluetooth, Ethernet, Serial RS232, USB 2.0, USB Host
Cut Options Available Upgrade to Auto Cutter (through Brady Tech Repair)
Cutter Type None
Device Connectivity PC connected & Stand-alone

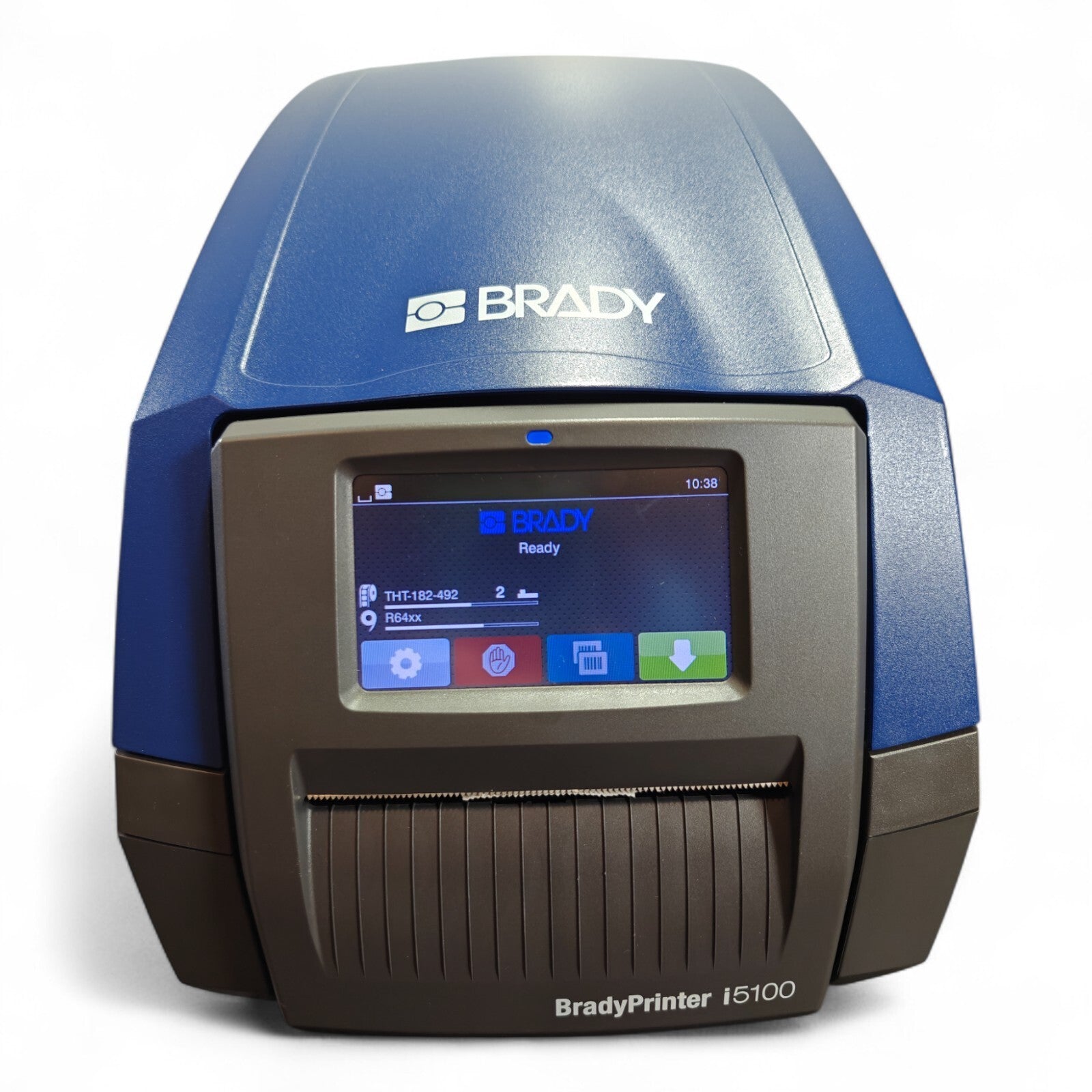

Display Type Color LCD Touch Screen
Keyboard Type None
Media Sensor Type Black Mark, Gap Sensor, Notch, Ribbon End
Memory 256 MB RAM, 50 MB IFFS Flash
On Screen Indicators Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Print Mode: Brady or Standard, Ribbon and label part number recognition, Ribbon Remaining, SD Memory Card inserted, Sensor: selection and positioning, Supply Remaining, USB Memory Stick inserted, USB Slave Status, WLAN Field Intensity
Plug Type US
Power Supply Voltage 100 - 240 V @ 50 - 60 Hz
Auto Shut-Off / Power Conserve Yes
User Interface Type PC, Touch Screen
Battery Type Lithium-manganese Battery
Operating System Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Printing Specifications Automatic Label Set Up Yes
Barcode Symbologies - 2D Aztec, Data Matrix, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code
Barcode Symbologies - Linear Codabar, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN/UCC 128, EAN/UPC, EAN/UPC Extension 2, EAN/UPC Extension 5, EAN-13, EAN-8, FIM, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, POSTNET, UPC-A, UPC-E, UPC-E0
Calibration Required? Yes
Color Printing Capability Single Color
Font Styles Bitmap Default Font - 12x12 dots, Bitmap Default Font - 16x16 dots, Bitmap Default Font - 16x32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold
Maximum Labels per Day 5000
Maximum Label/Tape Width 4.16 in
Maximum Print Speed 5.9 in/s
Minimum Label Length 0.20 in
Maximum Printed Label Length 6.6 ft
Print Resolution 300 dpi
Print Technology Direct Thermal, Thermal Transfer
Progamming Language abc Basic Compiler, Database Connector, Jscript, SAP Integration, ZPL Emulator
Media Sensor Adjustment Yes
Compatibility Compatible Media 2HT-, 3HT-, 3PS-, PS-, PSL-, THT-, THTCLP-, THTEP-, THTFP-, THTFT-, XTHT-
Label Material Types Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate
Materials Supported Continuous, Die-cut
Custom Labels Available Yes
Maximum Print Width 4.16 in
Software Compatibility Brady Workstation, Windows based driver for 3rd party software use
