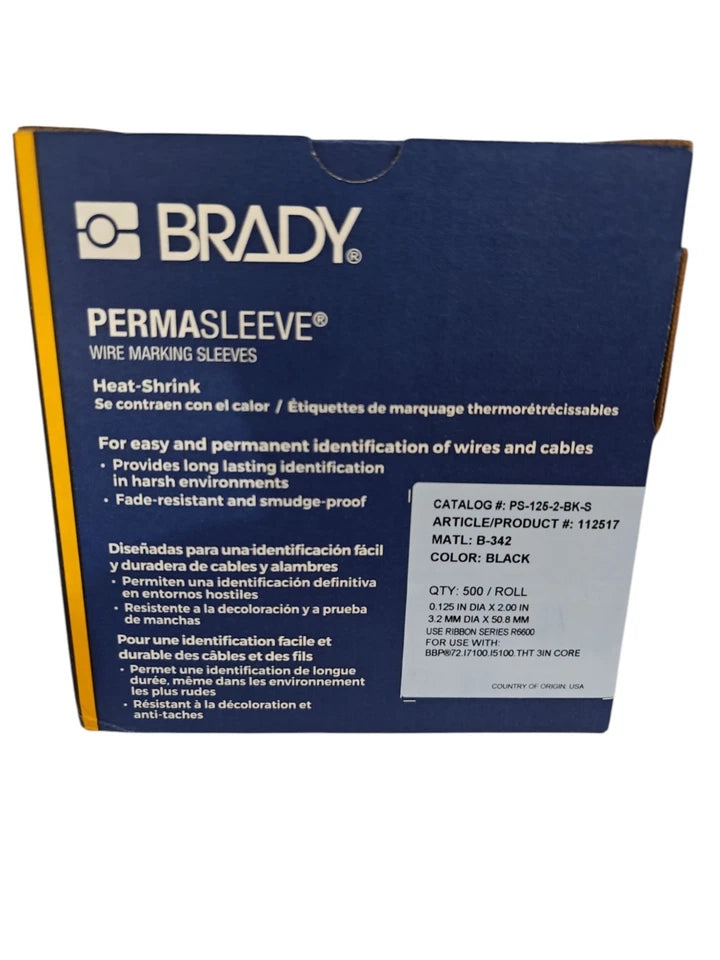

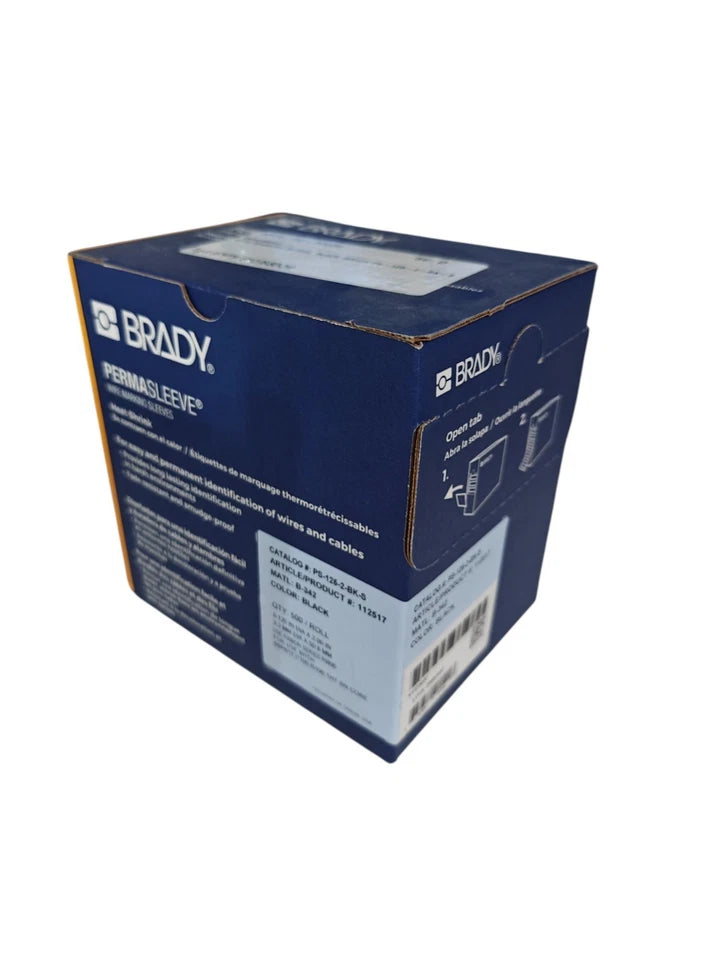

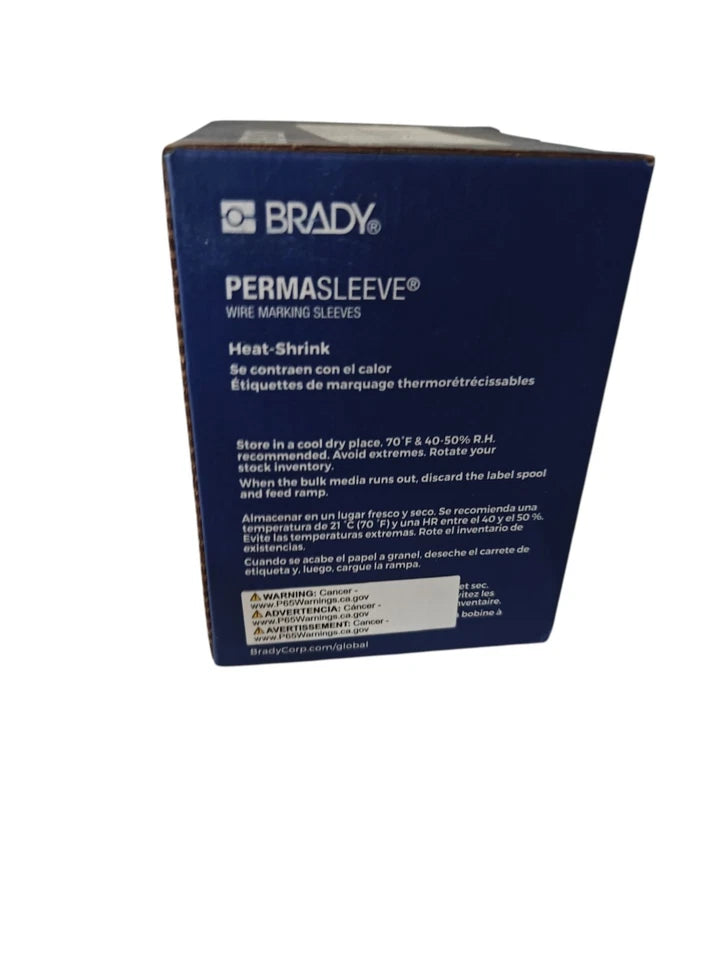

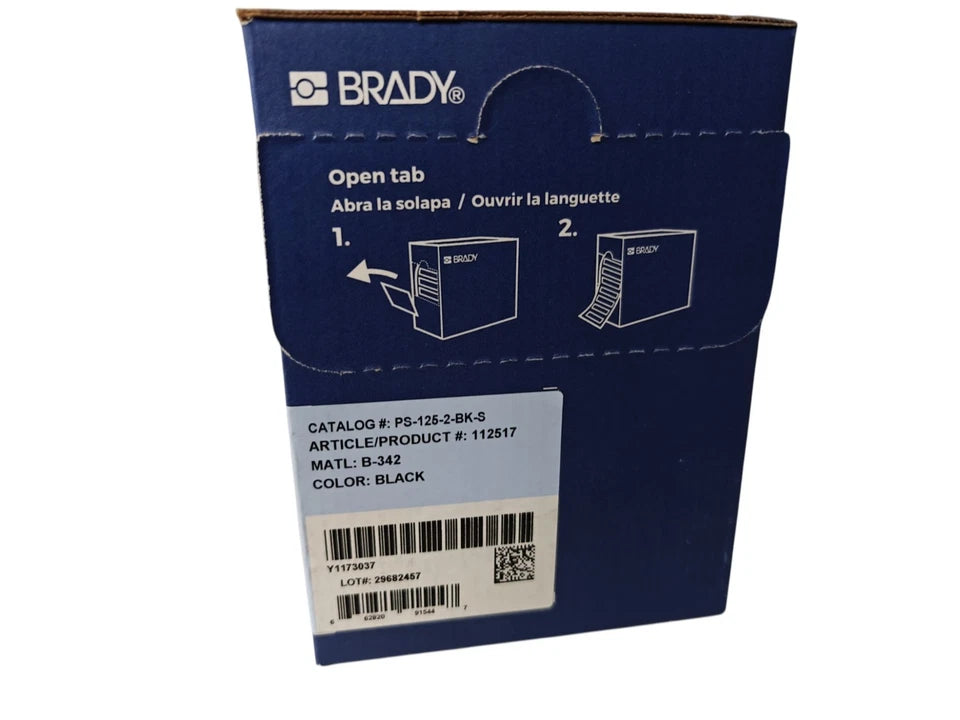

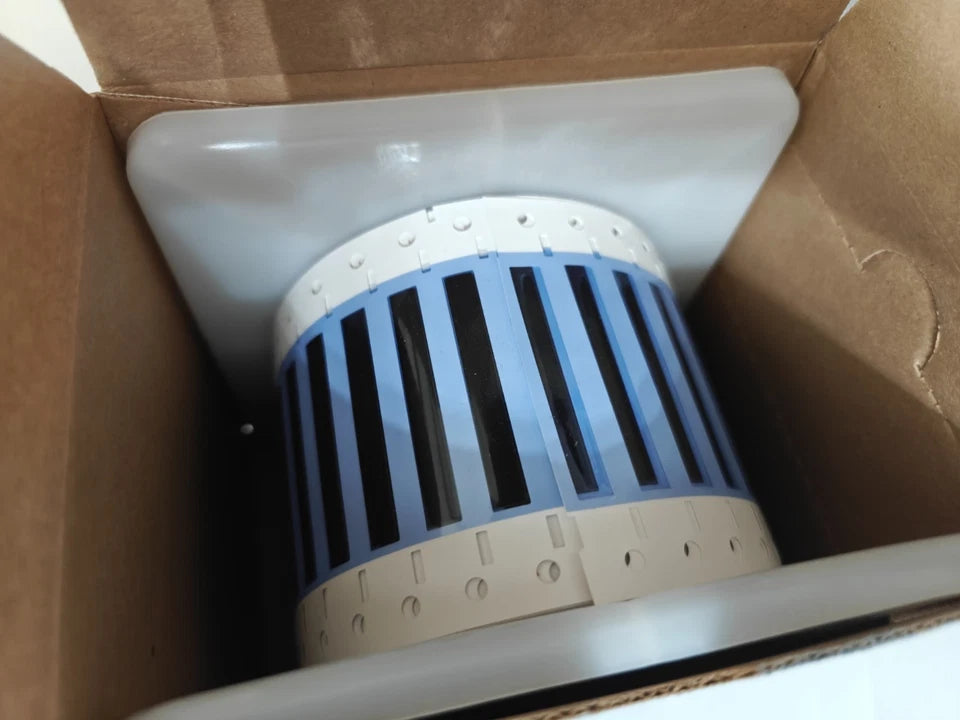

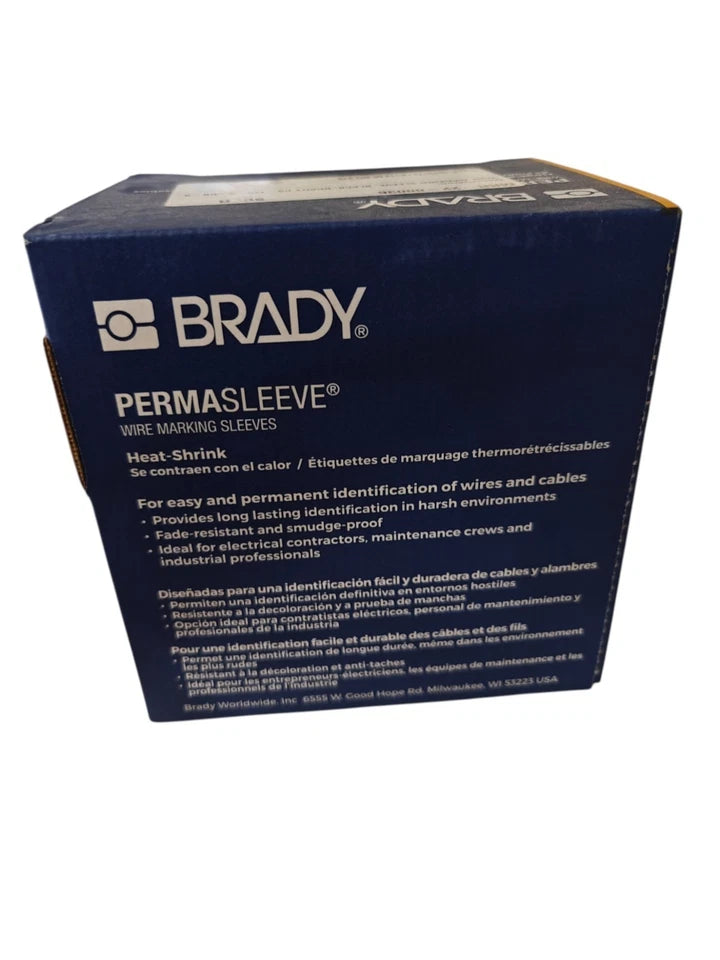

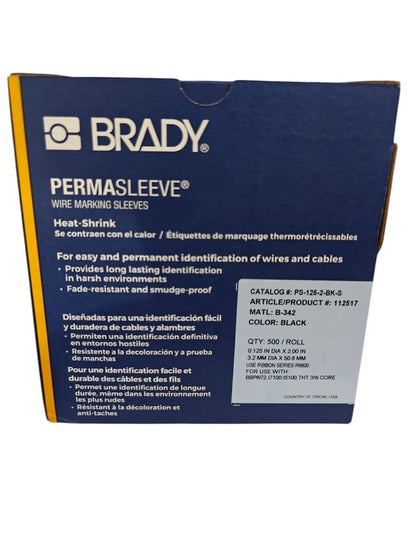

BRADY PermaSleeve [PS-125-2-BK-S] Heat Shrink Wire Marking Sleeves 1/8”, 3” Core
BRADY PermaSleeve [PS-125-2-BK-S] Heat Shrink Wire Marking Sleeves 1/8”, 3” Core
Regular price
$99.99
Regular price
Sale price
$99.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Specifications - PS-125-2-BK-S
| Key Characteristics | Catalog Page # | 198 |
| Product Number | 112517 | |
| UPC | 662820915447 | |
| UOM | Roll of 500 Each | |
| Quantity per Roll | 500 | |
| Unit Price | ||
| Trade Name | PermaSleeve® | |
| Brand Name | Brady® |
| Dimensions | Dimensions | 0.235 in H x 2 in W |
| Height | 0.235 in | |
| Width | 2 in | |
| Sleeve Size | 0.125 in Dia x 2 in W | |
| Vertical Repeat | 0.5 in | |
| Recovered Diameter | 0.046 in | |
| Recovered Wall Thickness | 0.02 in | |
| Web Width | 3.49 in | |
| Diameter as Supplied | 0.125 in | |
| Core Diameter | 3 in |
| Material Characteristics | Material Number | B-342 (View Technical Data Sheet) |
| Material | Heat-shrink Polyolefin | |
| Material Properties | Flame-retardant, Heat-shrinkable | |
| Label Properties | Heat Shrink | |
| Finish | Matte | |
| Color | Black | |
| Resistance Properties | Chemical-resistant, Corrosion-resistant, Humidity-resistant, Smear-resistant, UV-resistant, Weather-resistant | |
| Shrink Ratio | 3:1 | |
| Service Temperature Range °F | -67 °F - 275 °F |
| Product Features | Application | Electrical Labeling, Wire and Cable Labeling |
| Continuous or Die-cut | Die-cut | |
| Printable Sides | Single-Side Printable | |
| Quantity per Row | 1 | |
| Sleeve Slits | No |
| Printing Specifications | Print Technology | Thermal Transfer |
| Compatibility | Printer Compatibility | BBP72, i5100, i6100, i7100, i7500, IP Series, PR Plus, THT 3" Core Printers |
| Recommended Ribbon | i75-R6700-WT, IP-R6700-WT, R6700-WT | |
| Wire Diameter Range | 0.046 in - 0.11 in | |
| Wire Gauge Range | 22 AWG - 16 AWG |
| Compliance | California Prop 65 | |
| REACH SVHC Status | Please contact our CS department for more information | |
| REACH Candidate List Date | Please contact our CS department for more information | |
| Country of Origin | United States of America | |
| SAE | SAE 23053/5, SAE AS-5942, SAE AS81531 | |
| ECCN (Export Commodity Control Number) | EAR99 | |
| HTS Code (Harmonized Tariff Schedule) | 8443.99.2550 | |
| UL | UL224 | |
| RoHS Compliance Status | Please contact our CS department for more information | |
| UNSPSC | 39131502 |
