Brady PS-094-2-BK-S PermaSleeve Heat Shrink Wire Marking Sleeves 3/32" x 2", BLK

Brady PS-094-2-BK-S PermaSleeve Heat Shrink Wire Marking Sleeves 3/32" x 2", BLK

$99.99
$99.99
Sale Sold out
Shipping calculated at checkout.

Brady PS-094-2-BK-S PermaSleeve Heat Shrink Wire Marking Sleeves 3/32" x 2", BLACK

Specifications

Key Characteristics Catalog Page #  198
Product Number 112515
UPC 662820915423
UOM Roll of 500 Each
Quantity per Roll 500
Unit Price $0.64/Sleeve
Trade Name PermaSleeve®
Brand Name Brady®
Country of Origin  United States of America
HTS Code (Harmonized Tariff Schedule)  8443.99.2550
ECCN (Export Commodity Control Number)  EAR99

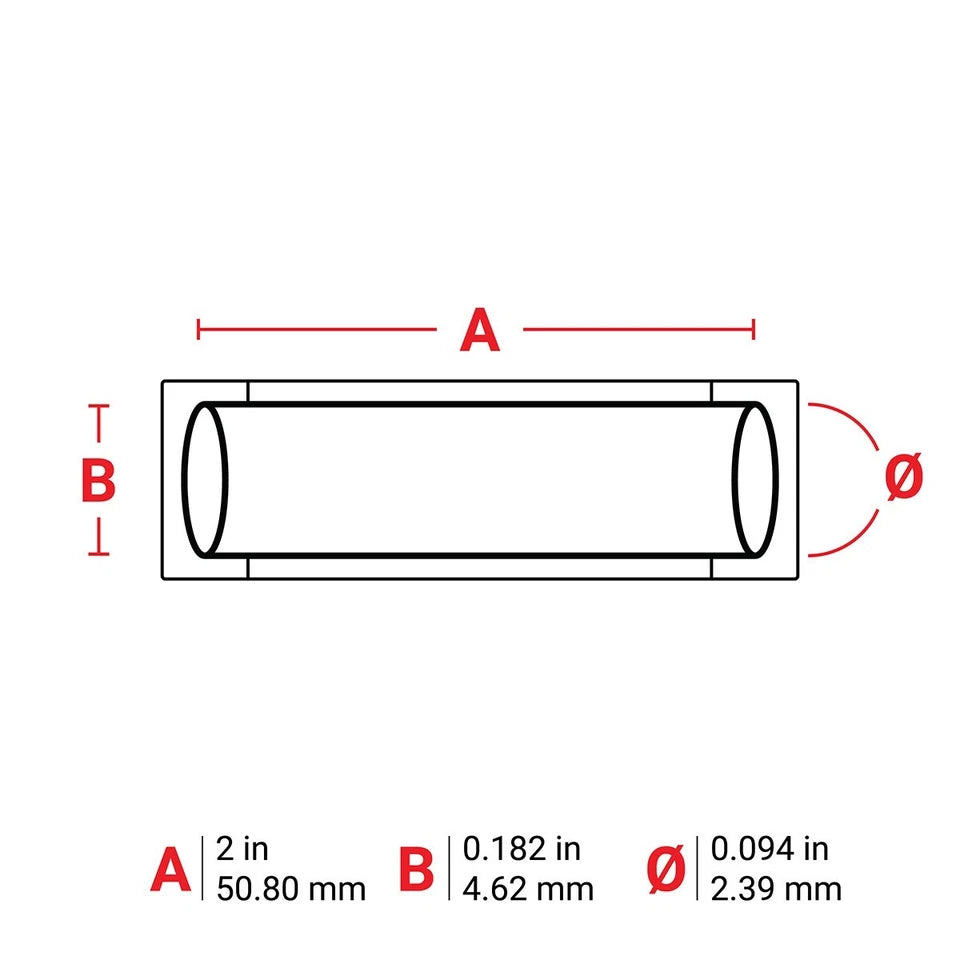

Dimensions Dimensions 0.182 in H x 2 in W
Height 0.182 in
Width 2 in
Roll Width 2 in
Sleeve Size 0.094 in Dia x 2 in W
Sleeve Width 2 in
Vertical Repeat 0.5 in
Recovered Diameter 0.023 in
Recovered Wall Thickness 0.024 in
Web Width 3.49 in
Diameter as Supplied 0.094 in
Core Diameter 3 in
Material Characteristics Material Number  B-342 (View Technical Data Sheet)
Material  Heat-shrink Polyolefin
Material Properties Flame-retardant, Heat-shrinkable
Label Properties Heat Shrink
Finish Matte
Color Black
Resistance Properties Chemical-resistant, Corrosion-resistant, Humidity-resistant, Smear-resistant, UV-resistant, Weather-resistant
Shrink Ratio  3:1
Service Temperature Range °F -67 °F - 275 °F
Minimum Service Temperature °F -67 °F
Maximum Service Temperature °F 275 °F

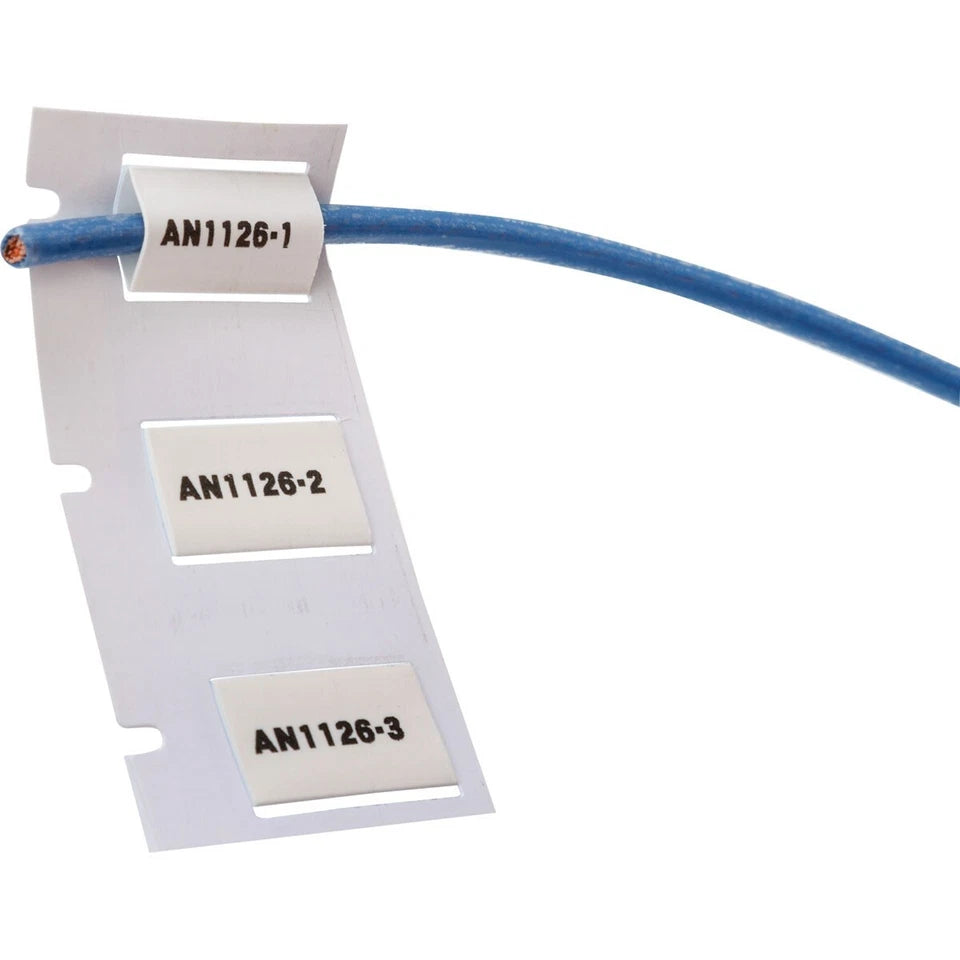

Product Features Application  Electrical Labeling, Wire and Cable Labeling
Printable Sides Single-Side Printable
Quantity per Row 1
Sleeve Slits No
Printing Specifications Print Technology Thermal Transfer
Compatibility Printer Compatibility BBP72, i5100, i7100, IP Series, PR Plus, THT 3" Core Printers
Recommended Ribbon  IP-R6700-WT, R6700-WT
Wire Diameter Range 0.023 in to 0.08 in
Wire Gauge Range  28 AWG - 20 AWG
Compliance UNSPSC  39131502
California Prop 65
RoHS Compliance Status
