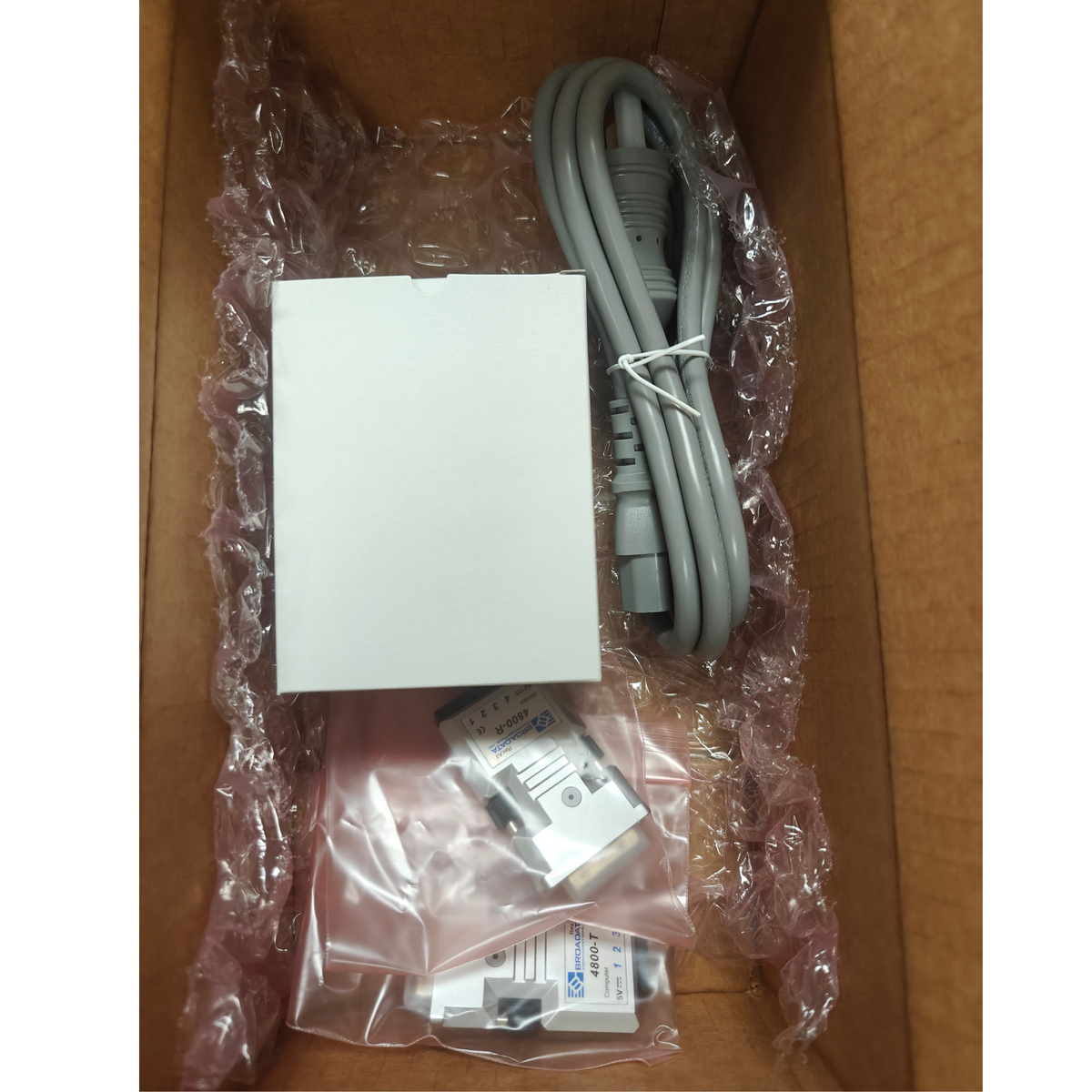

Broadata 4800-T 4800-R DVI Fiber Optic Transmitter Receiver Kit 0100224698

Broadata LinkBridge™ Fiber Optic-DVI Video Transmission System (4800-T / 4800-R)

Overview

The 4800 Series is a high performance, yet affordable, Fiber Optic DVI Extension System that is designed to carry one (1) DVI channel over long distances through four (4) multimode fibers. This unique fiber optic system lets your digital flat panel display extend up to 500m away from the host by TMDS digital signal transmission. No user adjustments are required due to the use of advanced digital fiber optic transmission technology.

Key Features

• Extends one DVI channel over multi-mode fiber up to 500m away from the source device
• Complies with Class 1 Laser Eye Safety
• Requires 4 Fibers for R, G, B Clock Transmission
• Operates up to 165MHz WUXGA, 1920x1200@60Hz or 1080p HDTV
• Offers self EDID Programming feature, detecting from display and restoring to an EPROM in the transmitter by simply plugging into the display without any physical DDC connection

Technical Specifications
