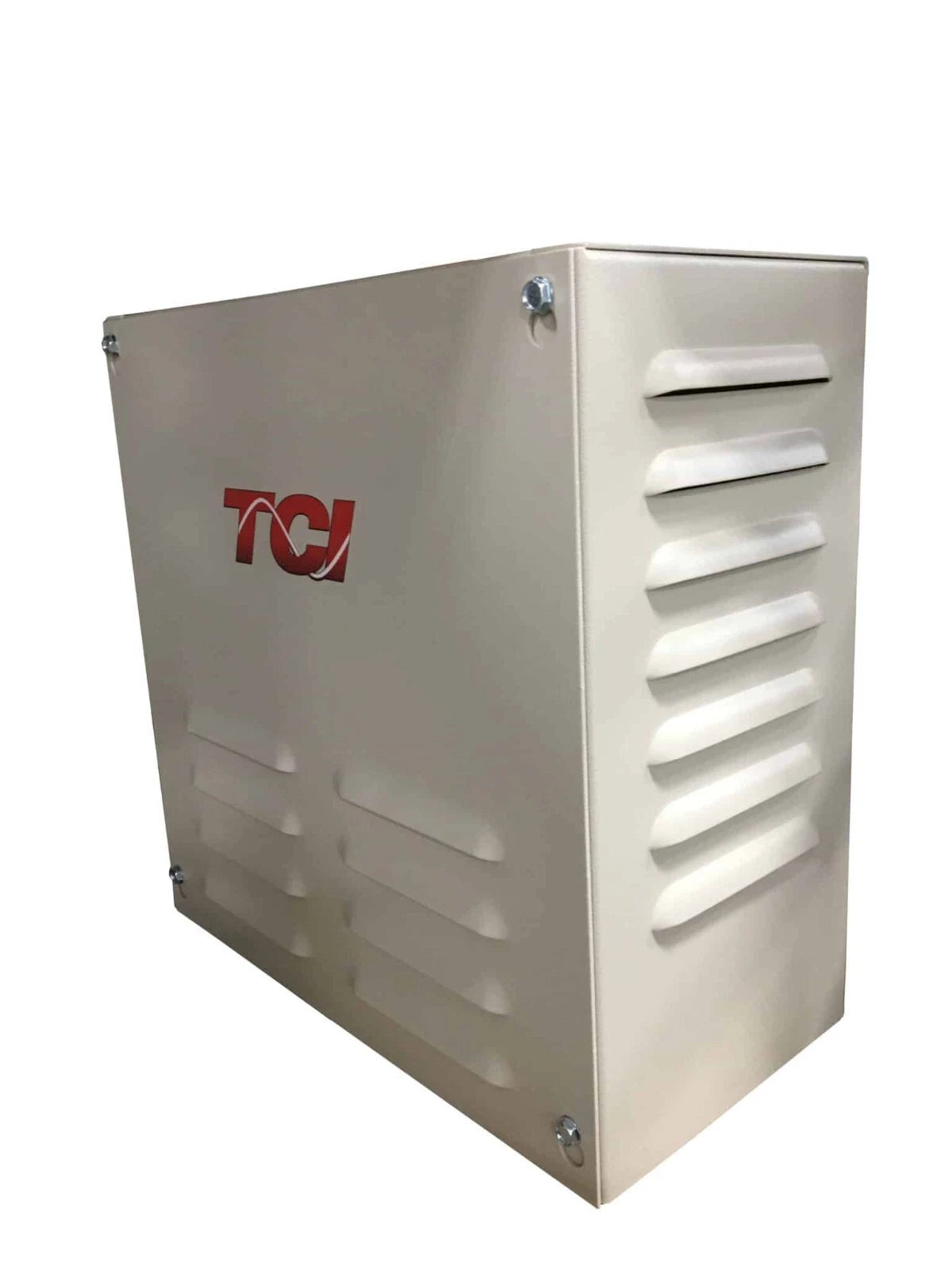

KDRMA5L1E01 Drive Reactor 480V 1HP 2.3A 3-Phase Line Inductor 3% Impedance UL
KDRMA5L1E01 Drive Reactor 480V 1HP 2.3A 3-Phase Line Inductor 3% Impedance UL
Regular price
$179.99
Regular price
Sale price
$179.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

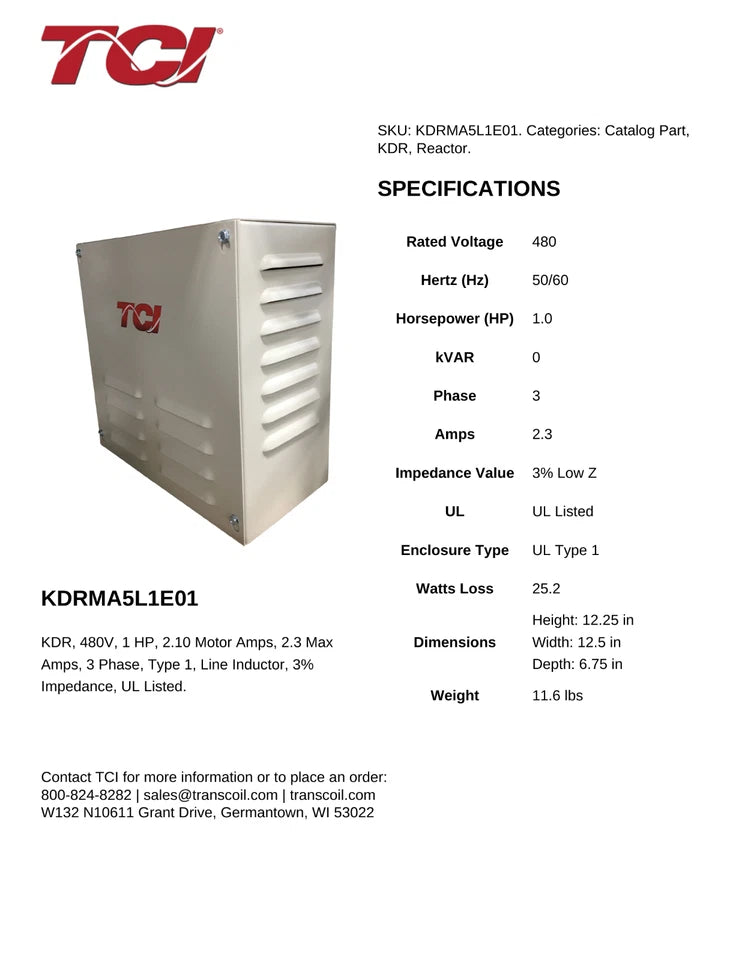

TCI Product Specifications
KDRMA5L1E01 Drive Reactor 480V 1HP 2.3A 3-Phase Line Inductor 3% Impedance UL

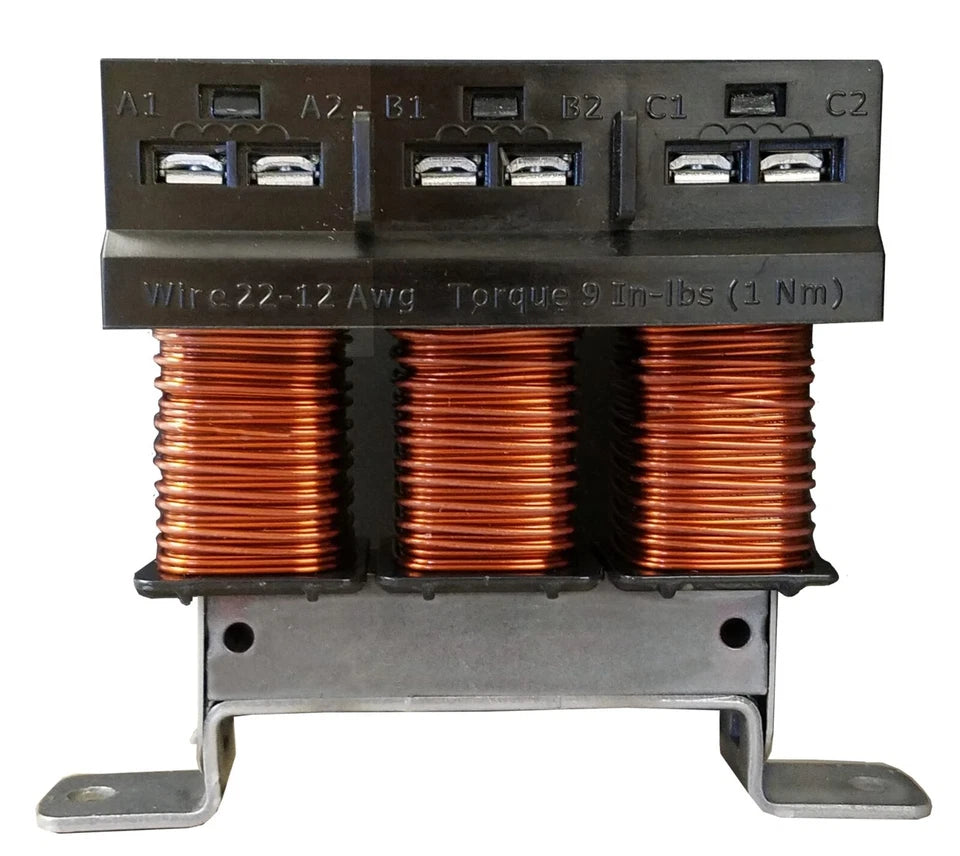

KDR line reactors are electrical components that help to protect 6-pulse rectifiers and power conversion devices such as variable frequency drives (VFDs). When used in conjunction with a VFD, a KDR line reactor can help reduce harmonics and protect the drive from harmful voltage spikes. KDR line reactors are recommended on the input of each VFD in multiple drive applications.
KDR reactors are constructed with durability in mind and can be used on both the input and output of a VFD. When used on the output of a drive, KDR reactors reduce voltage distortion at the motor terminals, extending the service life and minimizing insulation stress of any motor.
The addition of a KDR Reactor will reduce harmonic content, which reduces the total RMS current, thereby improving the total power factor.
Nuisance tripping is less common
Drive uptime is increased
Power factor is improved
Limits expensive down-time
Increases life of drive
Protects sensitive equipment
