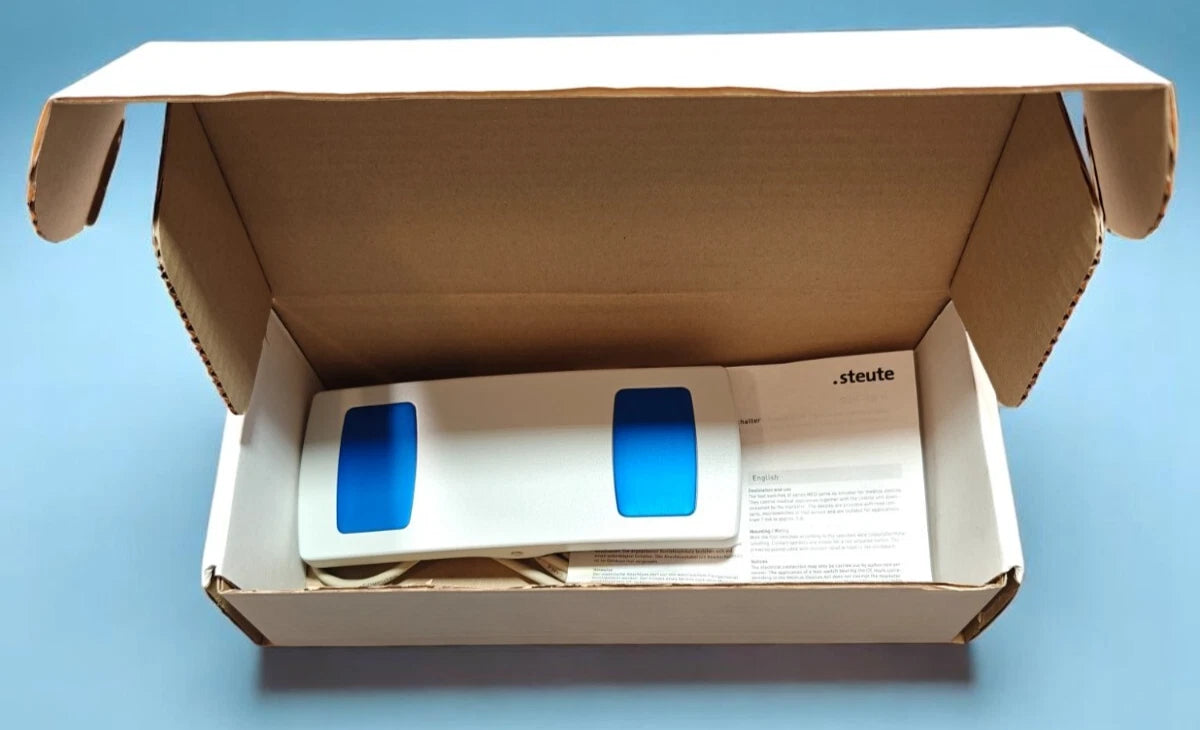

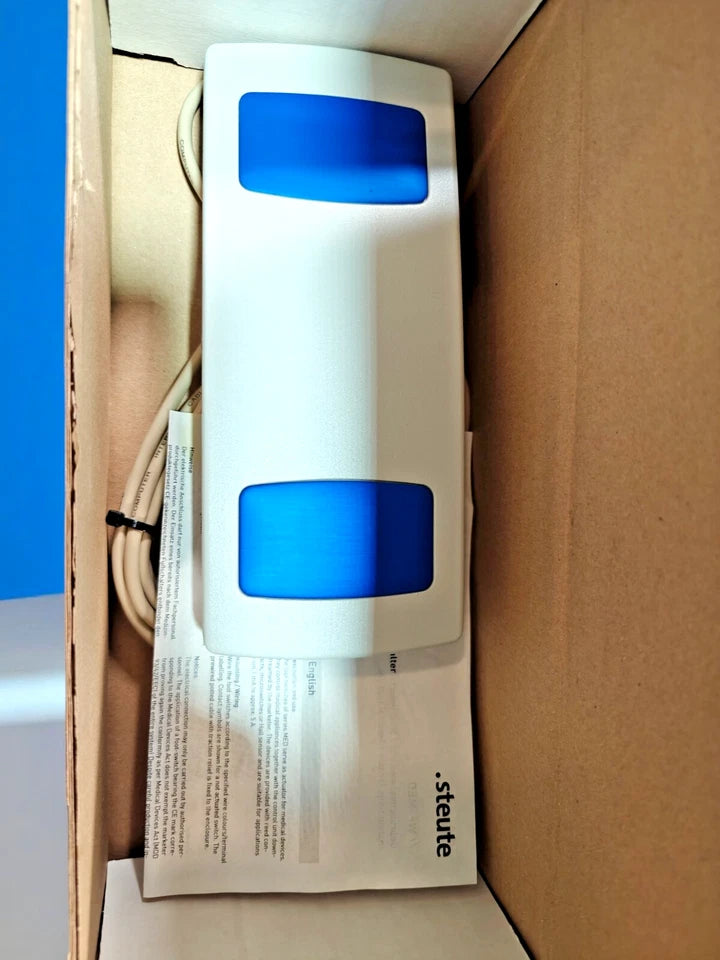

NEW Steute Medical Rocker WF-MED Foot Switch [52183901] | IPX8 CE UL 94V-0

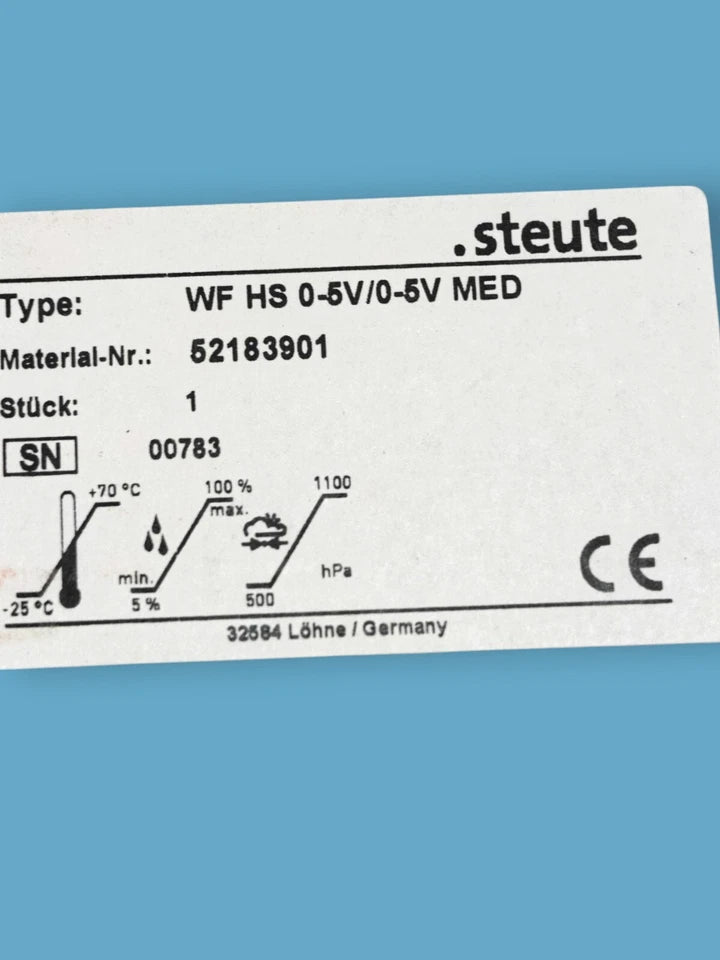

Steute WF HS 0-5V/0-5V Foot Switch (Part No. 52183901) — a high-quality medical-grade foot control unit made in Germany. Built for reliability and safety, it meets IEC 60601-1 and ANSI/AAMI ES60601-1 standards, and is ideal for demanding clinical environments.

Key Features:

• Housing: Thermoplastic, shockproof, UL 94 V-0

• Pedal: GD-Zn alloy, RAL 7035

• Protection: IPX8 (IEC/EN 60529)

• Switch Types: Reed contact, micro switch, Hall sensor

• Output Options: 1–2 NO contacts, 1 change-over, analog 0–10 VDC, 0–20 mA, 4–20 mA

• Mechanical Life: >1 million operations

• Connection: 2 m cable (other lengths optional)

• Switching Voltage: Max 25 VAC / 60 VDC

• Switch-on Current: Max 1 A

• Switching Capacity: 20 VA (reed), 30 VA (micro switch)

• Hall Sensor Power: 15–30 VDC / max 25 mA
