Precision Digital PD6000-6R4 PROVU 1/8 DIN Process Digital Panel Meter 85-265V
Precision Digital PD6000-6R4 PROVU 1/8 DIN Process Digital Panel Meter 85-265V
Couldn't load pickup availability
Upgrade your industrial monitoring and automation systems with the reliable and highly accurate Precision Digital PROVU PD6000-6R4 1/8 DIN Process Digital Panel Meter . Designed for demanding applications, this meter offers exceptional flexibility with a programmable 4-20 mA analog output, advanced signal scaling, and integrated control relays. Whether you are replacing a faulty unit or building a new control panel, this American-assembled meter delivers industrial-grade precision and UL-listed safety.
Key Features & Capabilities:
-
Universal Power Supply: Accepts 85-265 VAC (50/60 Hz) or 90-265 VDC, ensuring compatibility with a wide range of industrial power grids.
-

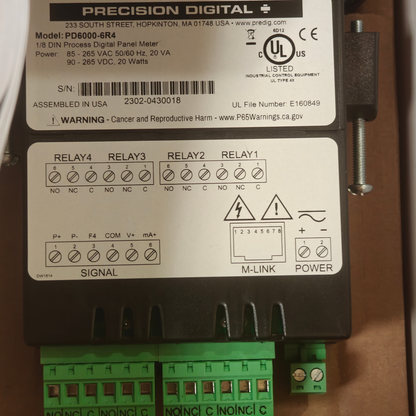

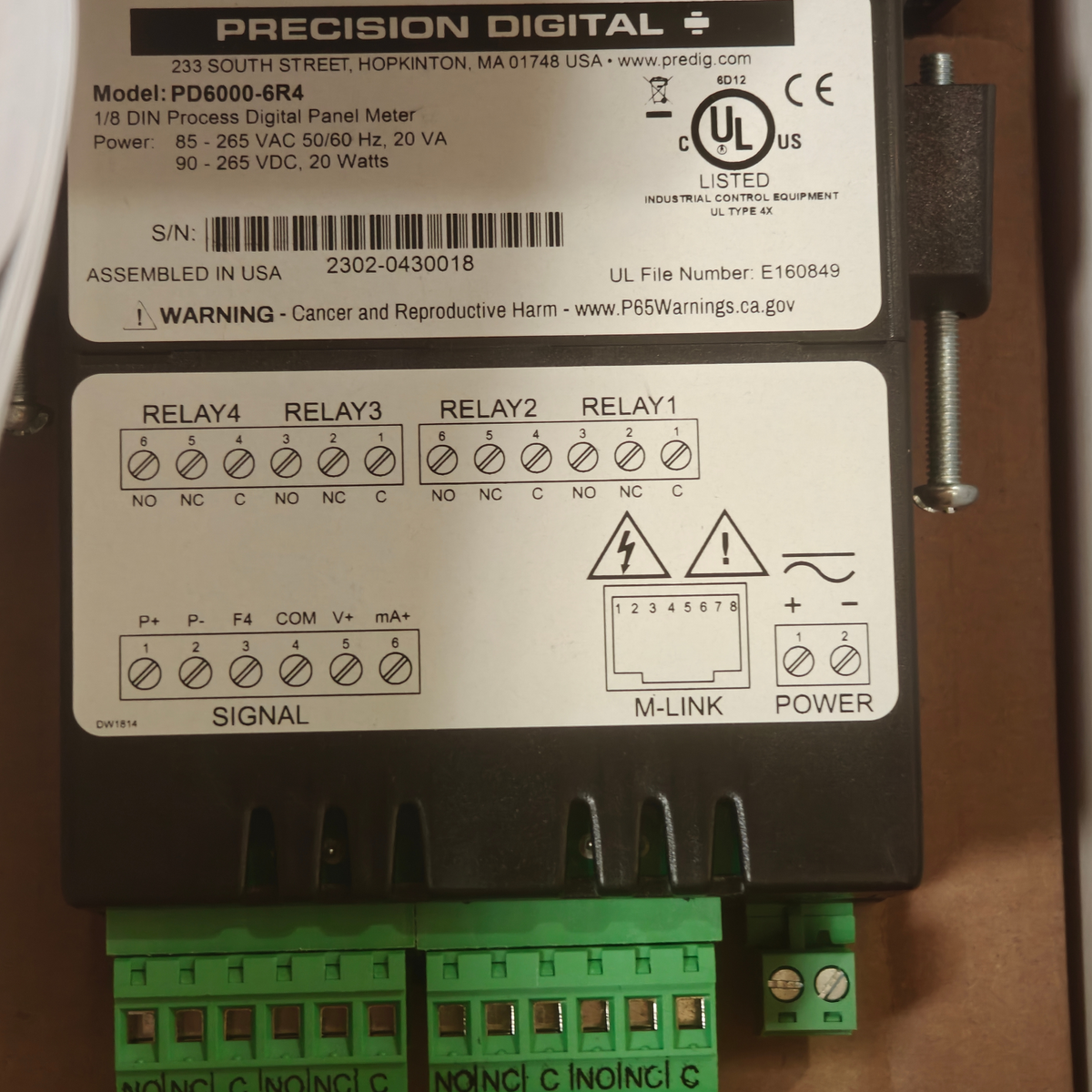

Advanced Control: Equipped with 4 distinct internal relays (Relay 1 through 4) featuring NO/NC/C terminals for comprehensive process automation.
-

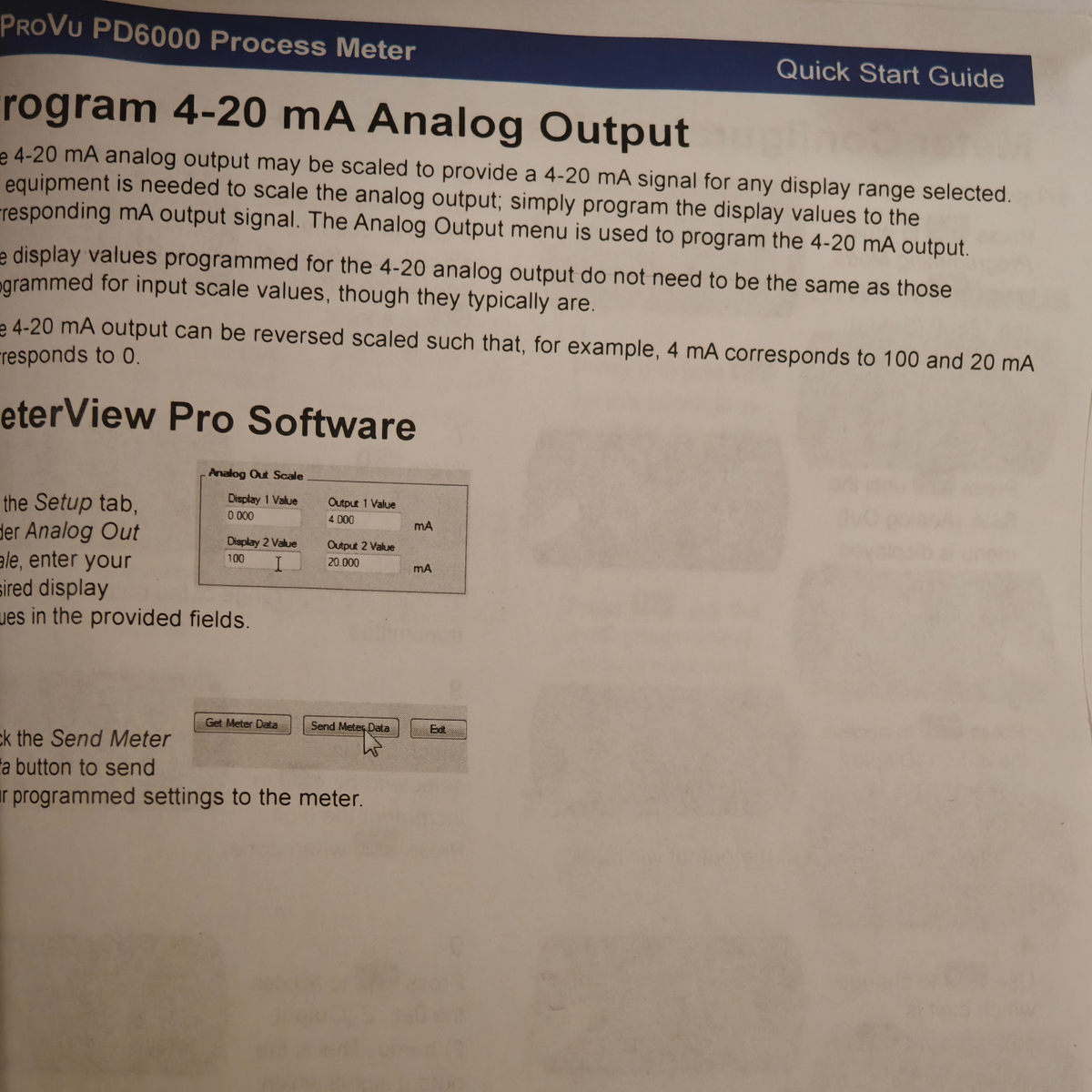

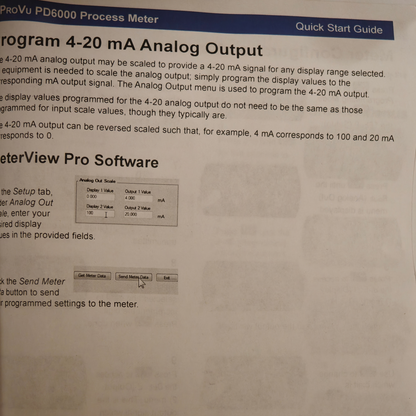

Programmable Analog Output: Features a scalable 4-20 mA analog output that can be customized to any display range via the front panel or PC.
-
MeterView Pro Compatible: Easily program and configure your display, input scales, and output values using Precision Digital's intuitive PC software.
-
Industrial Grade & Safe: UL Listed for Industrial Control Equipment (Type 4X) and proudly assembled in the USA.
Technical Specifications
| Brand | Precision Digital |
|---|---|
| Product Line | PROVU |
| Model / MPN | PD6000-6R4 |
| Form Factor | 1/8 DIN |
| Power Requirements | 85 - 265 VAC (50/60 Hz, 20 VA) / 90 - 265 VDC (20 Watts) |
| Outputs | 4 Relays (NO/NC/C), 4-20 mA Analog Output |
| Certifications | UL Listed (File: E160849), CE |
| Country of Origin | Assembled in USA |
