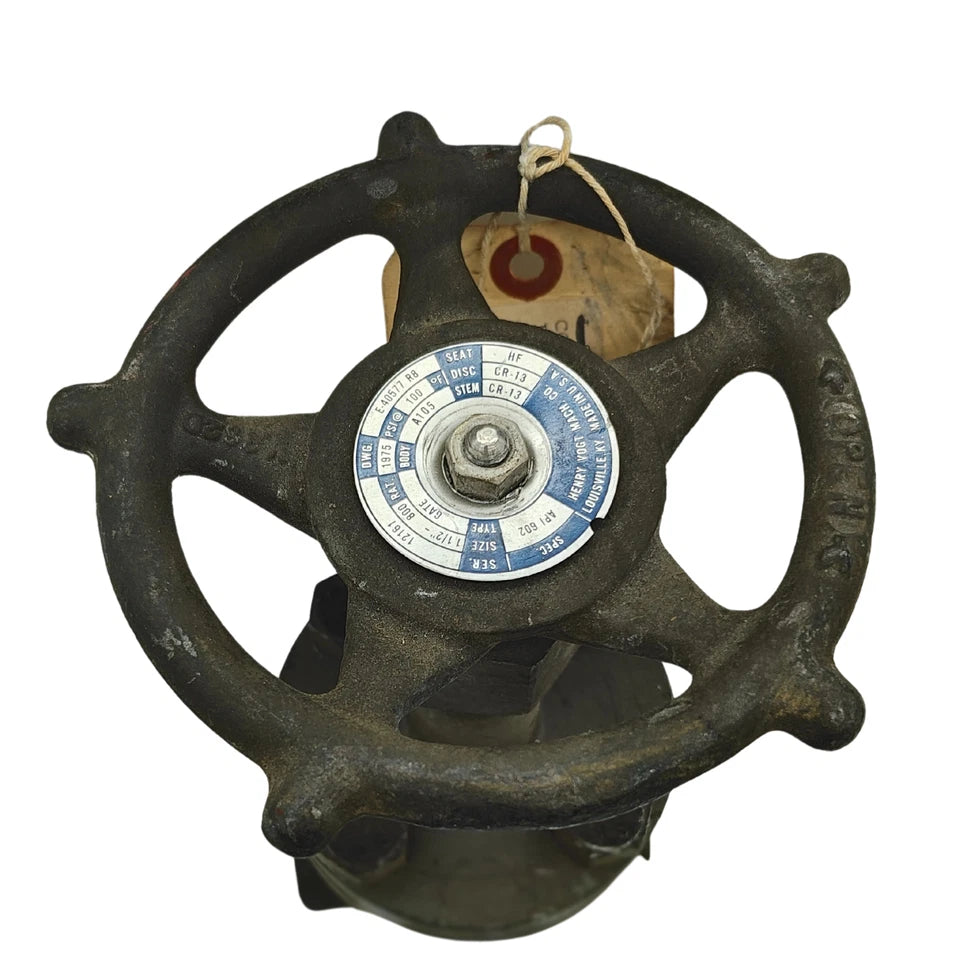

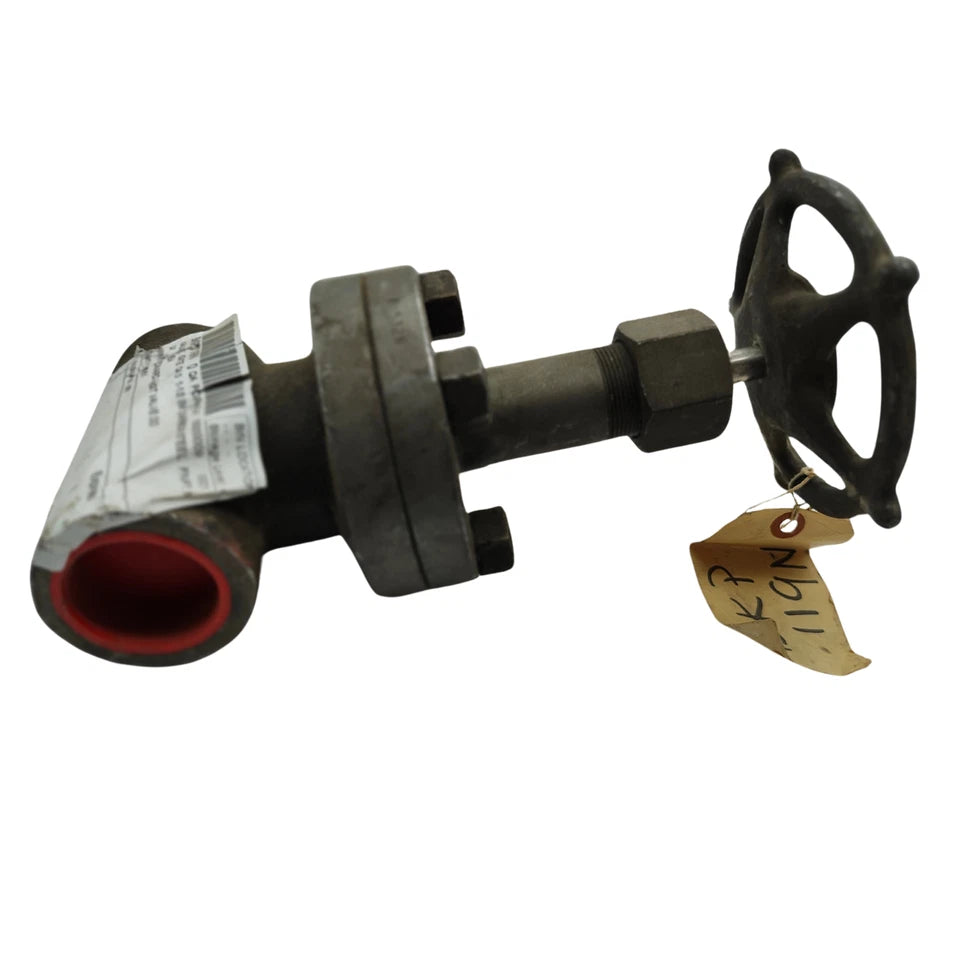

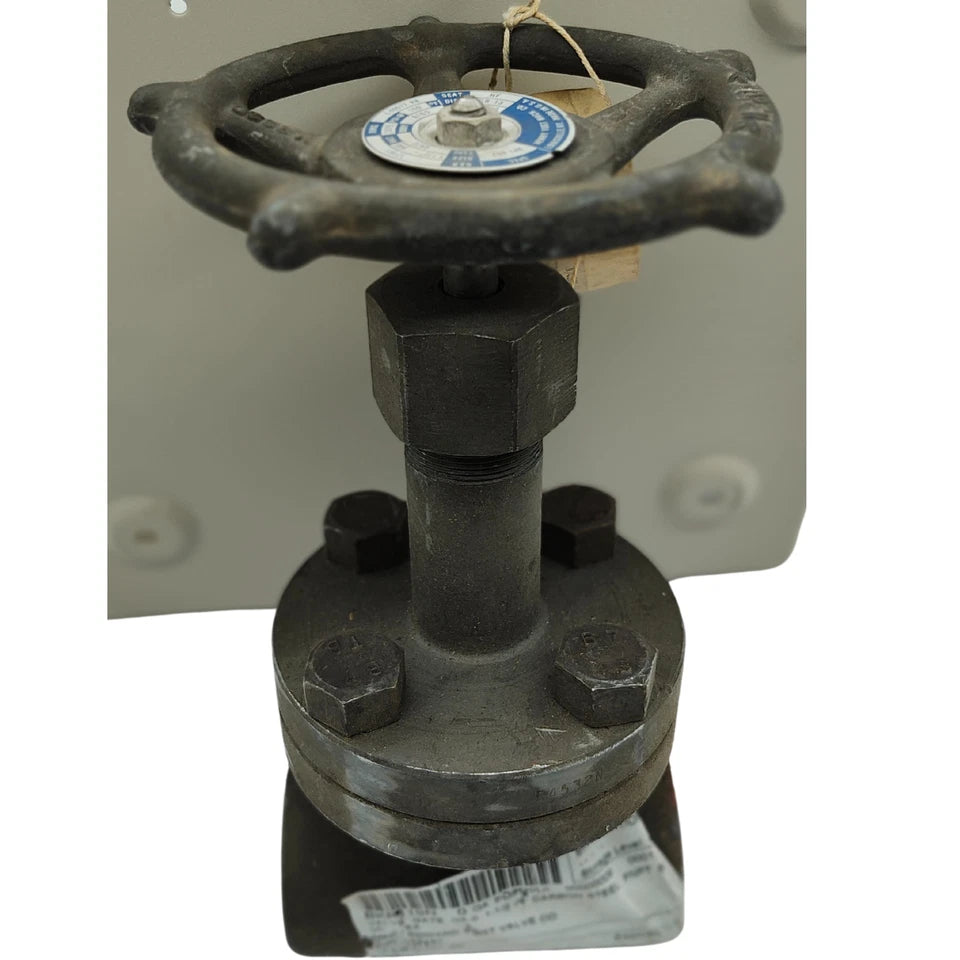

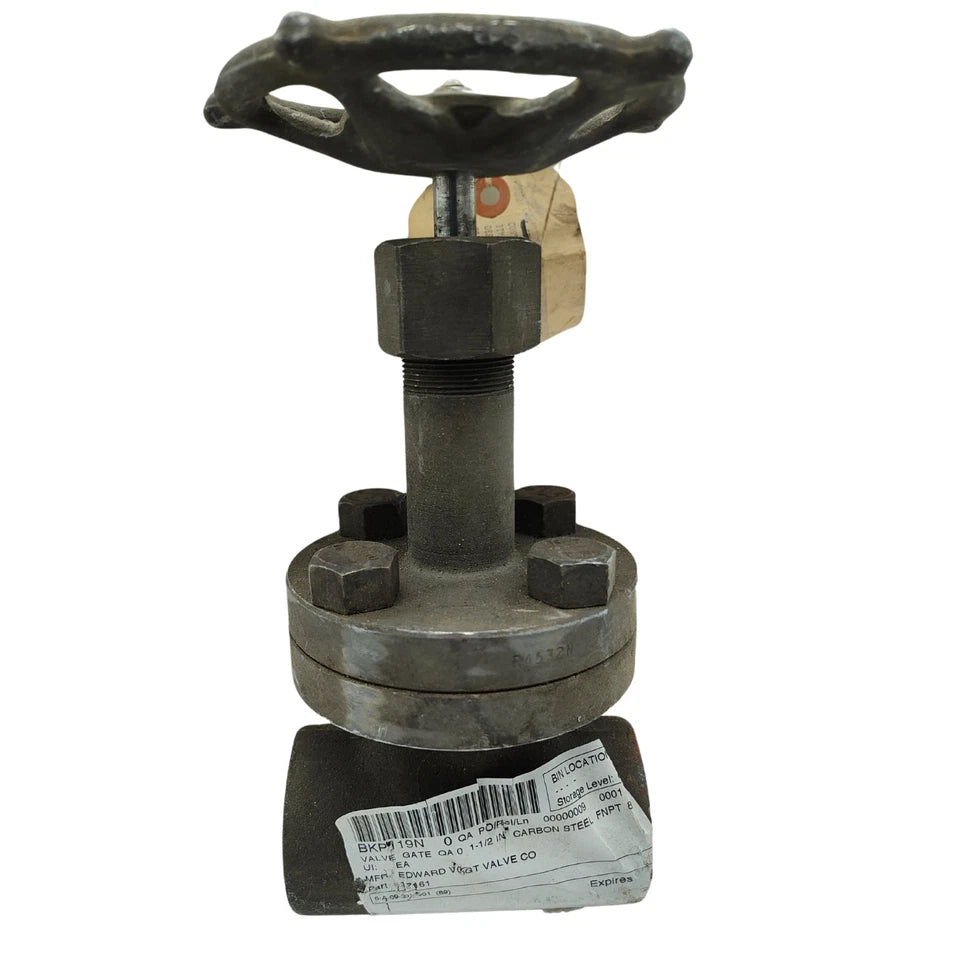

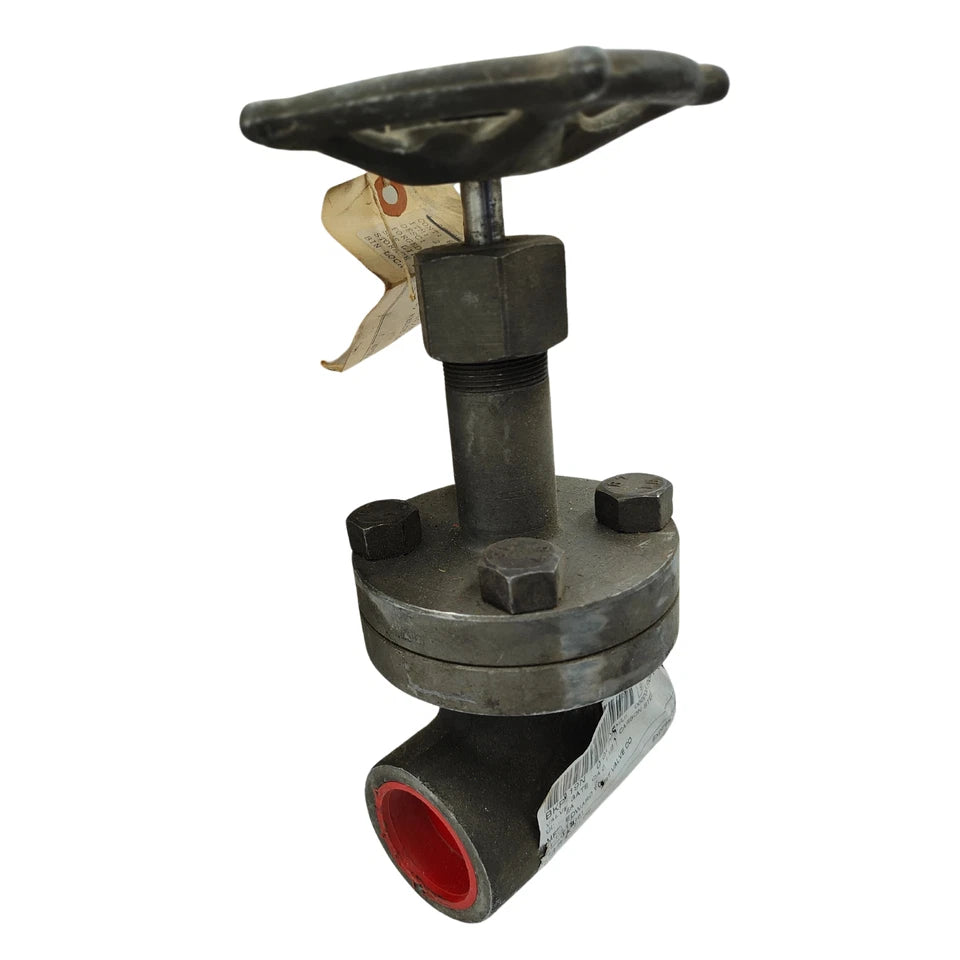

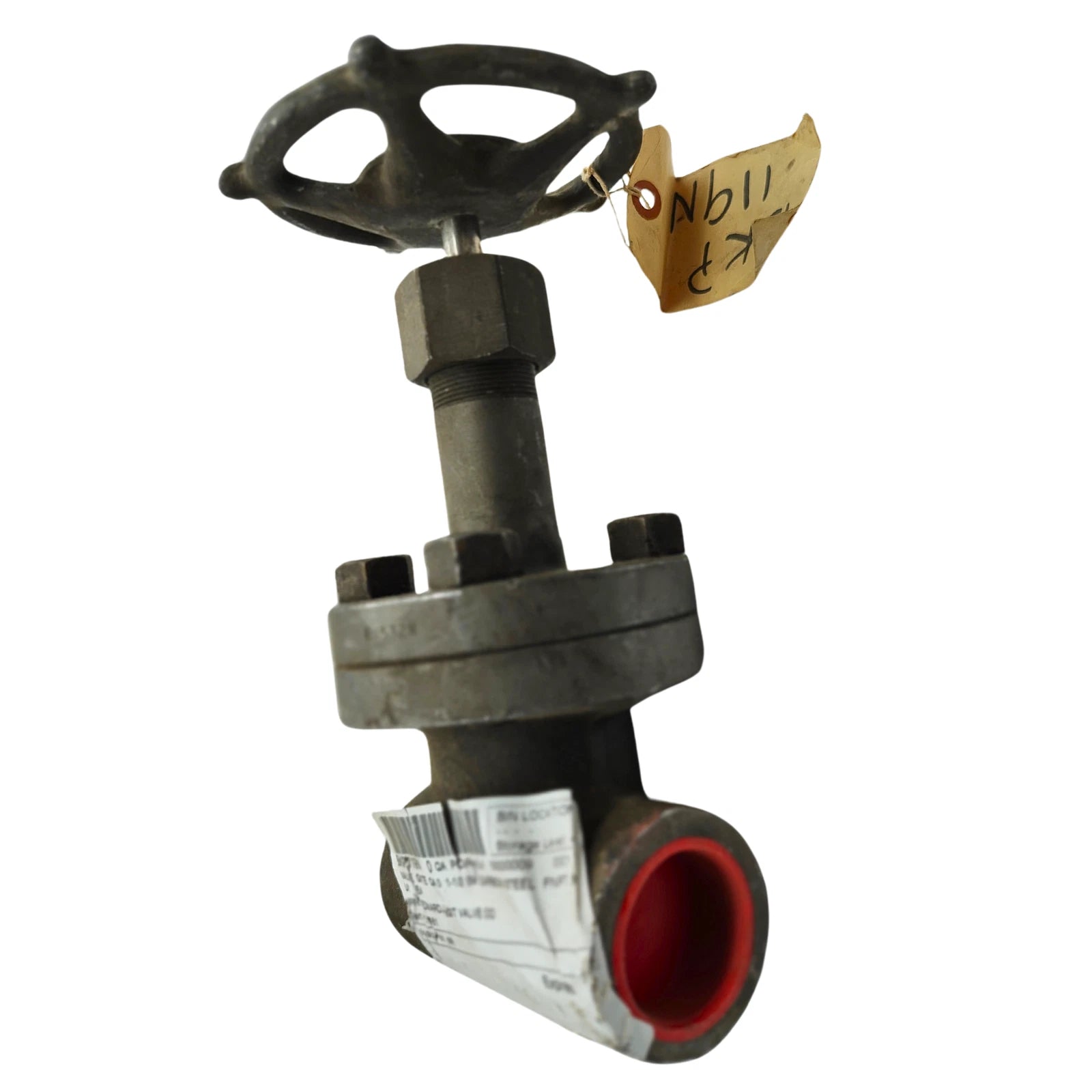

VOGT VALVE 1-1/2 in. Forged CARBON Steel Conventional Port Threaded Gate Valve
VOGT VALVE 1-1/2 in. Forged CARBON Steel Conventional Port Threaded Gate Valve
Regular price
$49.99
Regular price
Sale price
$49.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Series 12161 1-1/2 in. Forged Carbon Steel Conventional Port Threaded Gate Valve
Specifications:
| Series Number | 12161 |
|---|---|
| Size | 1-1/2" (40 mm) |
| Body/Bonnet Material | A105 Forged Carbon Steel |
| End Type | Threaded (NPT) |
| Pressure Class | Class 800 (PN 130) |
| Pressure Rating | 1975 PSI @ 100°F (136.2 BAR @ 38°C) |
| Design Features | Round Bolted Bonnet Spiral Wound Gasket Inside Screw Stem Screw Gland Solid Wedge Hard Faced Seats |
| Compliance | API 602 ASME B16.34 |
| Valve Dimensions | A-End-to-End: 4.75" (121 mm) B-Open: 10.75" (273 mm) C-Closed: 9.38" (238 mm) D-Seat Diameter: 1.25" (31.8 mm) E-Handwheel Diameter: 5.75" (146 mm) Weight: 16.1 lbs (7.3 kg) |
| Trim Options | 12161: 13% Cr. Trim, HF Seats |
